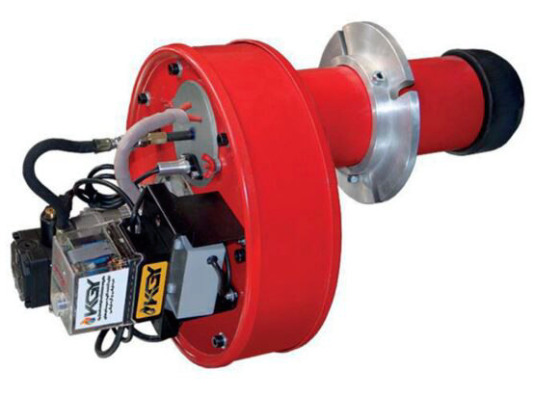

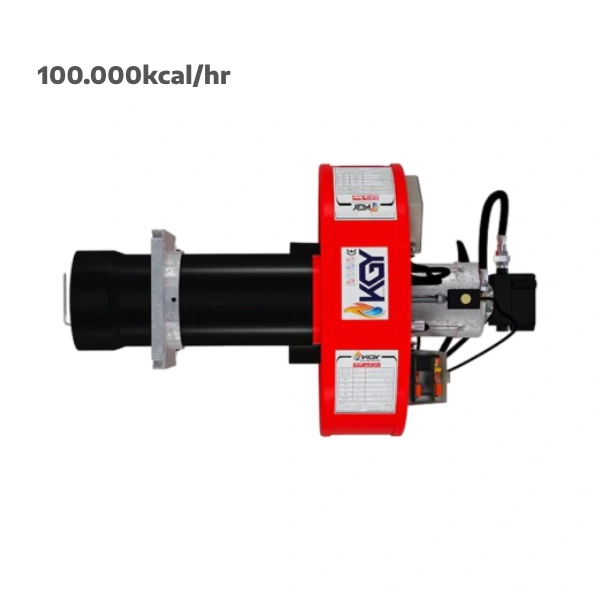

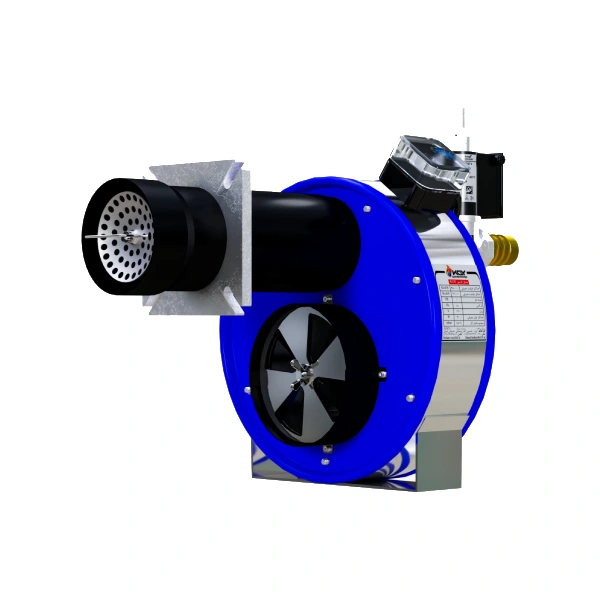

Burner for Boiler Model KG10 Koolak Gostar Yazd

Guide to Selecting and Purchasing Gas Burner for Boiler Model KG10

The Koolak Gostar Yazd gas boiler burner model KG10 is among the most widely used industrial devices, designed to generate heat for various hot water boilers, steam boilers, heaters, and warm air furnaces. Koolak Gostar Yazd is one of the top domestic manufacturers of heating and HVAC equipment, offering a capacity of 100,000 kcal/hr, gas fuel operation, and certified by the Iranian Standard Organization.
One of the key advantages of the Koolak Gostar Yazd gas boiler burner 100,000 kcal/hr compared to other models on the market is the addition of a spiral to its fan. This feature enhances airflow direction toward the combustion chamber, stabilizes fan performance under constant pressure, and minimizes axial force on the shaft. Improved airflow guidance and balanced pressure result in better fuel-air mixing, complete combustion, and higher efficiency of the burner.
Generally, gas burners are designed for natural gas combustion. In such units, gas passes through a gas filter and is then controlled by a modulating solenoid valve, while the required combustion air is provided by a blower mounted on the motor shaft.
When purchasing any type of boiler burner—gas, diesel, or fuel oil—it is essential to consider the unit’s capacity. It is typically recommended that the burner capacity be around 20% higher than that of the boiler or related system.
On the DamaTajhiz specialized reference website, detailed technical specifications and guaranteed prices for various Koolak Gostar Yazd boiler burners are provided with official warranties, ensuring a smart and satisfying shopping experience.

Features of Gas Burner for  Boiler Model KG10 Koolak Gostar Yazd

The technical specifications and main features of the Koolak Gostar Yazd gas burner for boiler model KG10 include:

• Certified by the Iranian Standard Organization
• Equipped with a reinforced collector
• High thermal efficiency
• Includes a 1/2" chrome gas valve
• Very high combustion safety
• Low wear and energy-efficient operation
• Built with top-quality components and materials
• Easy access for maintenance and part replacement
• Integrated spiral design to guide and enhance airflow into the burner for boiler
• Capable of minimizing unburned fuel and improving gas consumption efficiency
• Applicable for heaters, warm air furnaces, hot water and steel boilers, steam boilers, power plants, dryers, and more
• Equipped with a six-blade 321 stainless steel fans with aerodynamic design inside the boiler burner pipe for enhanced airflow speed and direction

Main Components of Boiler Burner Model KG10 Koolak Gostar Yazd Gas

The Koolak Gostar Yazd gas boiler burner model KG10 includes major components and accessories, such as:

• Spark transformer (responsible for generating ignition spark)
• Air damper (controls the amount of air entering the combustion chamber)
• Powerful electric motor (its capacity varies depending on the burner’s thermal load)
• Gas solenoid valve (controls gas flow and is also called a modulating valve)
• Gas pressure switch (a safety component installed in the gas flow path leading to the chamber)
• Air pressure switch (a safety device installed in the air intake path for gas models)
• Control relay (the burner’s control brain—similar in form across gas, diesel, and dual-fuel models but functionally different)
• Steel body with high impact resistance (dimensions vary among different Koolak Gostar Yazd burners)
• Additional accessories such as spark electrodes, spark wires, flame protection tube, flame spreader, nozzle, ventilation fan (blower), gas filter, gas hose, photoelectric cell, and more

— Note: When purchasing a Koolak Gostar Yazd burner for boiler with different fuel types or capacities, be aware that prices vary depending on requested components and accessories.
