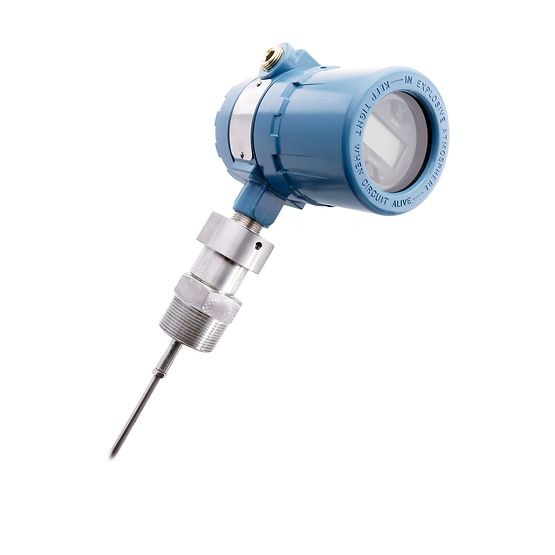

Rosemount Radar Level Transmitter Model 3300

دما: (150+)-(40-) درجه سانتیگراد فشار: تا 40 بار
inquiry
Tax excluded
  • Temperature: (150+)-(-40) degrees Celsius
  • Pressure: up to 16 bar
Quantity
Out-of-Stock

inquiry

پرداخت اقساطی

مجموعه دمـاتجهیــز امکان خرید اقساطی کالاهای سایت را فراهم نموده است. فرایند خرید اقساطی از این روش طی مدت ۱۰ الی ۱۵ روز انجام می شود و...
اطلاعات بیشتر و ثبت سفارش >
0
New
View all products of رزمونت (Rosemount)

Guide to choosing and buying Rosemount radar transmitter level model 3300

Rosemount, the manufacturer of the Rosemount model 3300 radar level transmitter, is one of the successful manufacturers of precision instruments, relying on modern European technical knowledge, experienced specialists, as well as advanced machines and equipment, to produce quality products in line with the highest quality assurance standards. Produces in Europe.

Rosemount model 3300 radar level transmitter

The function of detecting the fluid level in the radar level transmitter (Radar Fill Level Transmitters) is by broadcasting radio waves. These tube transmitters are installed on top of the tank containing the fluid and like radar, they send radio waves to the surface of the fluid inside the tank and receive the reflected waves. The duration of sending and returning waves indicates the fluid level inside the tank.

Radar level transmitter

The advantages of Rosemount model 3300 radar transmitter level

  • Accurate measurement
  • Easy maintenance without recalibration
  • Easy installation through two-wire technology
  • High flexibility

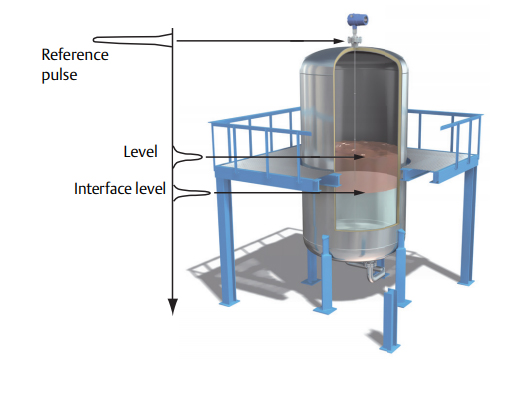

Installation location of Rosemount model 3300 radar level transmitter

Things that should be considered in choosing the radar level transmitters are:

  • Working temperature range
  • Structure and type of tank
  • The type of fluid inside the tank
  • Absence of other objects in the measuring range for correct operation

Features and technical specifications of Rosemount model 3300 radar level transmitter

  • The maximum measuring range is 77 feet (23.5 meters) from the upper reference point
  • How it works: Radar guidance using TDR (time domain reflection) wave technology.
  • ±0.2 in (5 mm) for probe ≤16.4 ft (5 m)
  • ±0.1% of measuring distance for rigid probe > 16.4 ft (5M)
  • ±0.15% of measuring distance for flexible probe > 16.4 ft (5 m)
  • Two wire power supply
  • Temperature: (150+)-(-40) degrees Celsius
  • Pressure: up to 40 bar
  • Output 4-20 mA
  • Integral digital display
  • Polyurethane casing covered with aluminum or stainless steel
  • Degree of electrical protection IP66
  • ATEX fireproof
  • CSA explosion proof
  • FM explosion safety
  • IECEx explosion safety
  • made in the USA

The authenticity of Rosemount model 3300 radar transmitter level

Damatajhiz confirms the authenticity and physical health of the Rosemount model 3300 radar level transmitter.

On the reference site and store of Damatajhiz, all kinds of radar transmitter levels have been presented to you, dear customers, to create a good feeling of optimal and smart shopping.
