TG dry vertical Manometer 4-cm screen

Guide to choosing and buying TG dry vertical Manometer 4 cm screen

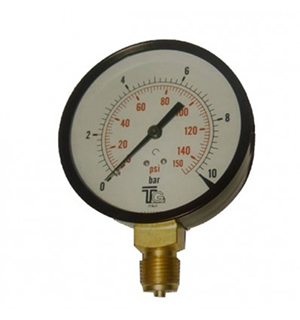

TG dry vertical manometer, 4 cm screen, is from the AAL series of TG pressure gauges, which are available in different models with a pressure measurement range of 0 to 60 bar, for use in light industries and to measure the pressure of gases and liquids that do not harm brass metal.

TG manometer, made in China, is one of the well-known brands with a reasonable price in the Iranian market, which is offered in various sizes from 4 to 15 cm with different pressure measurement ranges for various applications.

Among the applications of TG manometer, it is possible to measure the pressure of various systems such as air conditioning industries, heating and cooling engines, boilers, booster pumps, medical gases, compressors, steam boilers, etc.

The technical specifications of TG dry vertical manometer with 4 cm screen are as follows

• Type: dry analog
• It has a plate with a diameter of 4 cm
• Type of connection: from the bottom
• Connection size: 1/8 inch
• Connection material: brass
• Body material: steel
• Ambient temperature range: -40 to +60 degrees Celsius
• Rated by load and psi
• Pressure measurement range according to load: 0-1/ 1.6-0/ 2.5-0/ 4-0/ 6-0/ 10-0/ 16-0/ 25-0/ 40-0/ 60-02.5-0/ 4-0/ 6-0/ 10-0/ 16-0/ 25-0/ 40-0/ 60-0

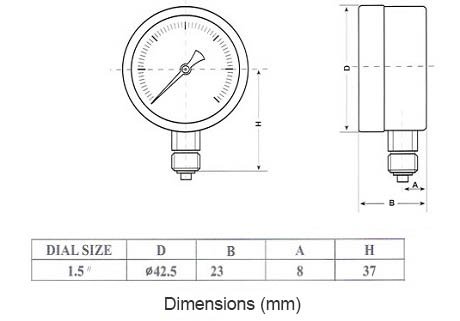

Dimensions of TG manometer dry vertical plate 4 cm

Guarantee and originality of TG dry Manometer 4 cm vertical

TG manometers have a guarantee of physical health and product authenticity.

On the reference site and store of Damatajhiz, all kinds of original TG manometers, with guaranteed prices, have been presented for you, dear customers, in order to create a good feeling of optimal and smart shopping.
