TG dry vertical Manometer 10 cm screen

Guide to choosing and buying TG dry vertical Manometer 10 cm screen

TG dry vertical manometer, 10 cm screen, is from the AAL series of TG pressure gauges, which are available in different models with a pressure measurement range of 0 to 60 bar, for use in light industries and to measure the pressure of gases and liquids that do not harm brass metal.

TG manometer, made in China, is one of the well-known brands with a reasonable price in the Iranian market, which is offered in various sizes from 4 to 15 cm with different pressure measurement ranges for various applications.

Among the applications of TG manometer, it is possible to measure the pressure of various systems such as air conditioning industries, heating and cooling engines, boilers, booster pumps, medical gases, compressors, steam boilers, etc.

The technical specifications of TG dry vertical manometer with 10 cm screen are as follows

• Type: dry analog
• It has a plate with a diameter of 10 cm
• Type of connection: from the bottom
• Connection size: 1/2 inch
• Connection material: brass
• Body material: steel
• Ambient temperature range: -40 to +60 degrees Celsius
• Rated by load and psi
• Pressure measurement range according to load: 1~0/ 1.6~0/ 2.5~0/ 4~0/ 6~0/ 10~0/ 16~0/ 25~0/ 40~0/ 60~0/ 80~0/ 100~0/ 160~0/ 250~0/ 400~0/ 1.5~1-/ 3~1-/ 5~1-/ 9~1-/ 15~1-

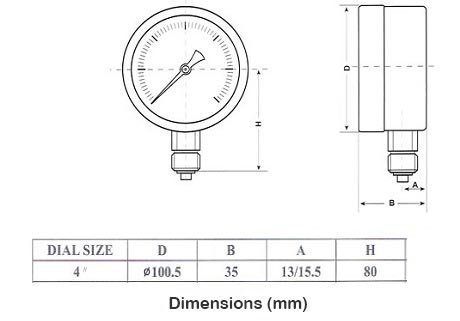

Dimensions of TG manometer dry vertical plate 10 cm

Guarantee and originality of TG dry Manometer 10 cm vertical

TG manometers have a guarantee of physical health and product authenticity.
