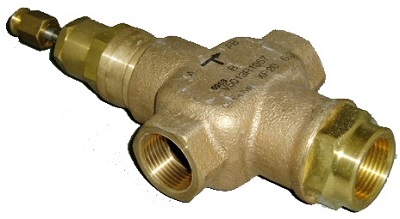

Honeywell three-way brass motorized valve 3/4"

Guide for selecting and buying Honeywell three-way brass motorized valve 3/4"

Honeywell three-way brass motorized valve 3/4" is a model motorized mixing valve with brass material with 4.3-inch gear connections and 16 bar working pressure (PN16), which is accompanied by a suitable electric actuator to control the flow of hot water. And cold is used in air conditioning systems such as chillers and heating systems. Honeywell three-way brass motorized valve 3/4" has a mixing function (mixing) so that the mixing valve output is a combination of two different inputs (A and B).

Characteristics of Honeywell three-way brass motorized valve 3/4"

• Valve type: Three-way mix linear control valve
• Milk type: brass
• Connection type: gear
• Movement rate: 20mm
• Leakage rate less than 0.05%
• Capacity: 6.30Kv
• Closing pressure with a 600 Nm engine is 1600 kPa
• This model does not operate with an 1800 Nm engine.
• The maximum temperature difference between use with hot and cold water is 60 K
• Application of Honeywell gear motor three-way valve in heating, air conditioning, and hot and cold water systems

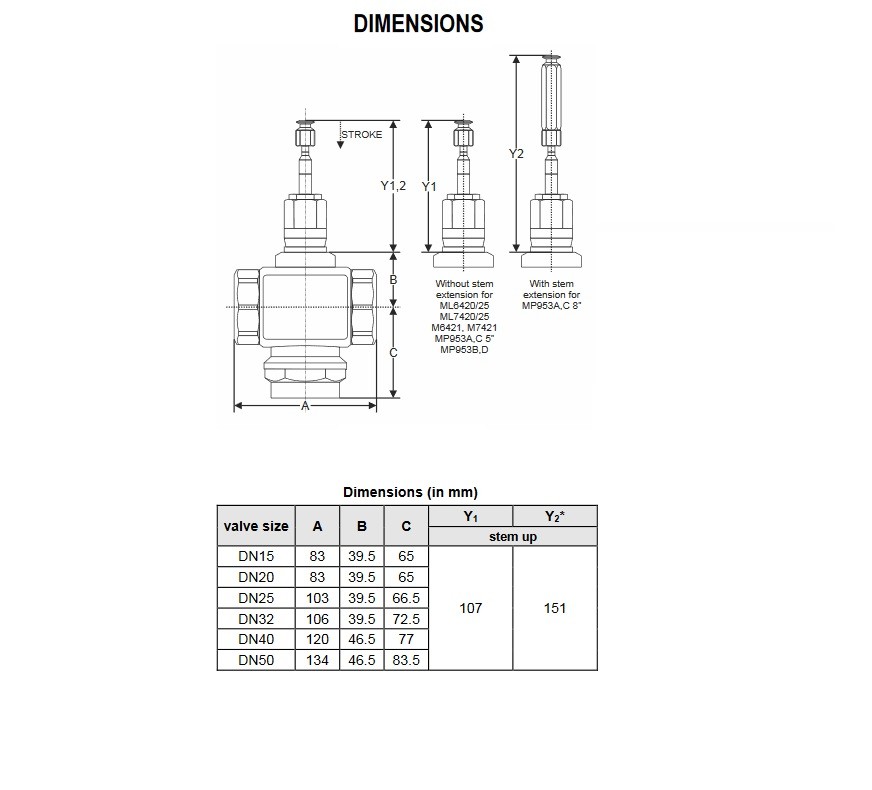

• Dimensions 83 * 211.5 mm (bar is in the bottom position)
• Dimensions 83 * 255.5 mm (bar is in top position)
• Honeywell motors used with Honeywell "3/4 brass three-way motor valve: ML6420 - ML6425 - ML7420 -ML7425 - ML6421 - ML7421 - ML6984 - ML7984
• Can be used in heating, air conditioning, and hot and cold water systems
• Requires electrical actuators, controllers, transformers, and sensors

The originality of Honeywell three-way brass motorized valve 3/4"

The company certifies the authenticity and physical health of the German Honeywell three-way motor valves.
In the reference site and Damatajhiz store, all kinds of Honeywell original motor valves have been provided for you, dear customers, in order to create a good feeling of optimal and smart purchase.
