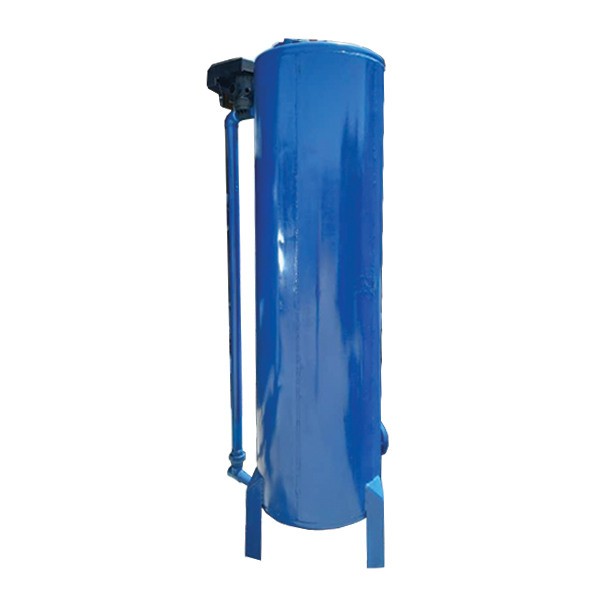

DamaTajhiz 30000 Grain Fully Automatic Metal Resin Water Softener

Guide to Selecting and Purchasing the DamaTajhiz Fully Automatic 30000-Grain Metal Resin Water Softener

The DamaTajhiz Fully Automatic 30000-Grain Metal Resin Water Softener is designed to remove suspended minerals and dissolved salts from the water used in building heating and cooling systems.

The unstable calcium and magnesium ions resulting from calcium and magnesium bicarbonate salts in the water, turn into solid calcium and magnesium carbonate deposits when heated. These deposits settle on heat exchange surfaces in heating and cooling systems. The formation of such solid scale on the heat transfer surfaces of devices like AHU and fan coil coils, condensers, evaporators, cast iron boiler interiors, steel boiler tubes, heat exchangers, and domestic hot water tanks leads to a reduction in thermal exchange efficiency. To prevent this, harmful and damaging elements must be removed using resin or ion exchange water softeners.

The fully automatic resin water softener by DamaTajhiz Engineering Group is offered in various capacities and features, with excellent quality, golden warranty, and after-sales services — standing out from similar products.

DamaTajhiz – Thousands of Products for Thousands of Projects (Since 2004)

Difference Between Automatic and Semi-Automatic Resin Water Softeners

Backwash and regeneration processes in semi-automatic resin water softeners are carried out regularly under the supervision of a boiler room operator. In contrast, fully automatic softeners perform these tasks automatically based on time or flow rate settings, with no need for an operator.

Resin Water Softener Capacity Calculation Formula

Required Water Softener Capacity (in grains) = (Water Hardness in PPM) × (Water Flow Rate in GPM) × 60 × 24 ÷ 17.1

To calculate the required capacity for purchasing a resin water softener, first determine the water consumption of your project and measure the water hardness level at the site (using available hardness test kits or measuring tools). Then, use the above formula to calculate the softener capacity accurately.

Technical Specifications of the DamaTajhiz Fully Automatic 30000-Grain Metal Resin Water Softener

• Ion Exchange Process
  The advantage of resin water softeners lies in their ability to reduce water hardness through ion exchange. This reduction can be confirmed using hardness test kits, whereas other types of softeners (descalers) only suspend the minerals without actually removing or reducing them.
• Equipped with Accessories
  The DamaTajhiz Fully Automatic 30000-Grain Metal Resin Water Softener features a fully automatic valve (requires no operator and functions based on flow or time settings), connected piping, and corrosion-resistant polyvinyl nozzles. It also includes essential accessories like a salt tank, graded silica, and resin.
• Operating Pressure
  The operating pressure of the DamaTajhiz resin softener is 4 bar. The body sheet thickness and top/bottom heads are calculated based on the unit’s capacity and size.
• Protection & Standards
  To protect the internal surfaces and ensure standard water quality output, the interior of the DamaTajhiz resin softener is coated with epoxy paint.
• Custom Manufacturing
  The specialized team at DamaTajhiz can design and manufacture duplex and even triplex resin softeners (upon request) in compliance with all engineering standards to meet client requirements.

Important Considerations for Using the DamaTajhiz Fully Automatic 30000-Grain Metal Resin Water Softener

1. The hardness of the outlet water from the DamaTajhiz 30,000 Grain Fully Automatic Metal Resin Water Softener must always be checked using a hardness test kit via the sample valve. If the water hardness exceeds the acceptable limit, immediately inspect the automatic backwash cycle of the softener.
2. For inlet pressures above 4.5 bar, it is recommended to install a pressure-reducing valve before the multi-port valve. Alternatively, at a minimum, close valve No. 1 (inlet) when changing the position of the multi-port handle to prevent sudden pressure from damaging the valve.
3. It is extremely important to use high-purity crystallized salt. (Using rock salt or regular salt with impurities can significantly reduce the lifespan of the resin and prevent proper regeneration.)
4. The brine suction level is preset at the factory. However, it can also be adjusted if necessary, from the back of the multi-port valve next to the brine line.
5. It is essential to check for any blockages in the brine pathway and ensure that the suction rate is sufficient to regenerate the resin using a brine concentration of about 10%. (Reduced suction may indicate a drop in pressure inside the softener.)
6. Using muddy water or water containing suspended particles, as well as water with high levels of iron, manganese, copper, or other heavy metals, can damage the softener resin and reduce water output. (It is therefore recommended to use a sand filter to remove suspended particles before the water enters the softener.)
7. Preventing the freezing of resin and water inside the softener is critical. (Freezing can destroy the resin’s chemical properties.)

DamaTajhiz – Thousands of Products for Thousands of Projects (Since 2004)

Ordering and Warranty of DamaTajhiz 30,000 Grain Fully Automatic Metal Resin Water Softener

• The DamaTajhiz 30,000 Grain Fully Automatic Metal Resin Water Softener comes with a one-year Golden Warranty from DamaTajhiz.
• DamaTajhiz's expert team provides complete technical information and the best price for fully automatic resin water softeners with Golden Warranty—ensuring a smart and satisfying purchase experience for you.
• All resin softener prices on DamaTajhiz are up-to-date and include applicable discounts. These prices are also covered by DamaTajhiz’s Best Price Guarantee policy.
