Pentax Centrifugal Water Pump Overhead Height CH

Purchasing Guide for Pentax Centrifugal Water Pump Overhead Height Series CH & CS

1. Pentax water supply pumps, series CH, due to high flow rate and acceptable head, are extensively used in agricultural and construction industries, fire fighting systems, water transfer systems in industrial consumptions.
2. Pentax water supply pumps, series CS are capable to displace so relatively flow rate of water with low head and are extensively used in systems such as agricultural and circulation systems and pool water treatment systems. These pumps exactly are equivalent to Hayward Super pumps. Pentax pumps are economically cost-effective.
3. The above Height Centrifugal pumps are extensively used in sauna and pool systems since the volume of displaced water as flow rate and passed distance as the head is so high number and has made impossible use of the pumps at-home water supply systems and booster pumps and water supply pumps.
4. Maximum of work pressure and performance temperature of Pentax centrifugal pumps series CS are respectively 6 loads and 90 CG.

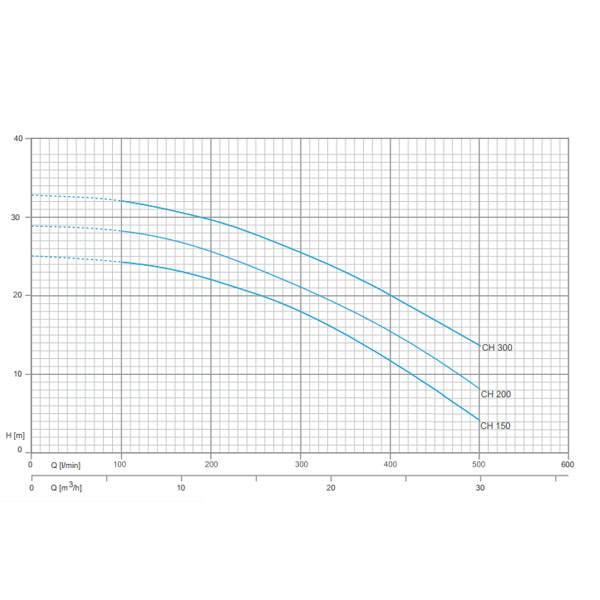

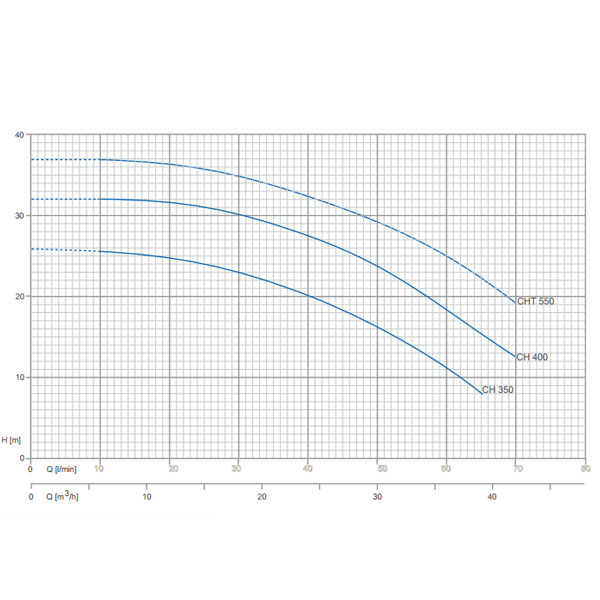

5. The numbers of head and flow rate provided for Pentax Centrifugal Water Pumps indicates maximum flow rate with head zero and maximum head with flow rate zero, but, selection diagram of Pentax Centrifugal Water Pumps have been presented in above figures for more study and exact selection of required pump.
6. It is possible to change the price of Pentax water Pumps mentioned in the above Table due to common changes of prices in the market so the final price will be informed after the customer’s order.
7. All kinds of Pentax centrifugal pumps are made in Italy and due to enjoying the most modern technology of hydraulic design in addition to efficiency higher than that of the similar samples, have higher longevity and durability, smaller dimensions, reduction of heat wastes and as a result, lower power consumption smaller installed engine, original mechanical seal, slow and silent function (performance)



   ---

The points should be taken into consideration after purchasing Pentax Centrifugal Water Pump Overhead Height Series CH & CS

1. Control the pipes weights by sufficient supports and be careful that ground pump is not pressurized as the support of piping system pipes weight.
2. If the height of water drift in centrifugal water supply ground pumps is more than 15 m. and or the route is remarkably long, it is necessary to install a non-return valve between the pump and outlet valve to prevent water hammering while turning off the pump and you are also recommended to install a gate valve in this route to regulate pump service point and prevent from its excessive absorption capacity.
3. To cause the pump operates properly, a filter should be installed in the route of the intake pipe and the intake route pipe should be executed absolutely without water seepage and with a ramp in direction of a pump (without air compression in the higher alignment of the pump inlet ).
4. It is necessary to use an independent filter for Pantex pumps series CS to be used for circulation of the pool.
