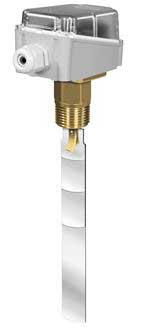

IT Water Flow switch Model SF1K

Guidance for choosing and buying IT Water Flow switch Model SF1K

IT water flow switch Italy is a vane or blade flow switch model with an ON/OFF function that detect water flow in air conditioning systems such as chillers.
In general, a flow switch is a mechanical tool that detects the water flow in the pipes by using the blades embedded in it and gives the command to turn the system on and off.
A flow switch, having blades of different sizes, is suitable for water pipes of sizes 1 to 8 inches.
From flow switch to achieve accurate, fast, and perfect performance in fluid flow control systems, this device is able to detect the amount of fluid flow, issue the necessary response when the number of fluid flow decreases or increases, and send a message to the control center to make a decision. Take control.
In flow switches, they use a metal blade that is connected to a lever, they adjust the length of this blade according to the set point when the flow reaches the value you set, the lever is tilted to one side and the switch command ( on/off).

Features of IT Water Flow switch Model SF1K

• Economical with easy installation for use in heating and air conditioning systems, refrigeration systems, and heat pumps
• It has an on/off function.
• Connection size: 1 inch gear
• It has replaceable blades suitable for 1 to 8 inch pipes
• Working pressure: 11 bar
• Operating temperature: -40 to +85 degrees Celsius

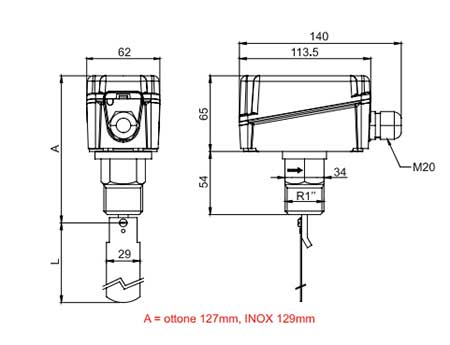

Dimensions of IT Water Flow switch Model SF1K

Warranty and authenticity of IT Water Flow switch Model SF1K

DAMATAJHIZ company confirms the authenticity and physical health of the IT Water Flow switch Model SF1K.
