  • Siemens Relay Diesel burner Model LAL1.25
  • Siemens Relay Diesel burner Model LAL1.25

Siemens Relay Diesel burner Model LAL1.25

مورد استفاده برای مشعل های گازوئیل سوز دمای عملکرد 60~20- درجه سانتیگراد
  • Used for gas and diesel burners
  • Operating temperature (60) ~ (-20) ° C
inquiry
Tax excluded
Quantity
Out-of-Stock

پرداخت اقساطی پرداخت اقساطی

مجموعه دمـاتجهیــز امکان خرید اقساطی کالاهای سایت را فراهم نموده است. فرایند خرید اقساطی از این روش طی مدت ۱۰ الی ۱۵ روز انجام می شود و...
اطلاعات بیشتر و ثبت سفارش >
New
View all products of زیمنس (SIEMENS)

Guide to choosing and buying Siemens Relay Diesel burner Model LAL1.25

Siemens is one of the successful manufacturers of control and automation equipment, including Siemens LAL 1.25 diesel burner relay, which relies on modern European technical knowledge, experienced specialists, as well as advanced machinery and equipment, and quality products in line with the highest standards of guarantee. Produces quality in Europe. Siemens LAL 1.25 diesel burner is a burner timer relay for controlling yellow and blue flame burners without air pressure monitoring.
In general, a relay is a simple electromechanical switch consisting of an electric magnet and a series of connections. Relays were hidden in a variety of devices, and in some early computers, relays were used for logic gates. Each relay has 4 parts consisting of an electric magnet, a blade or armature that can be absorbed by an electric magnet, a spring, and a series of electrical connections.

Siemens Relay Diesel burner Model LAL1.25

Performance of Siemens Relay Diesel burner Model LAL1.25

  • To control and monitor gas burners, diesel burners, or dual burners
  • Can be used in medium to high-capacity burners
  • Can be used in burners with intermittent activity
  • With self-control flame signal amplifier
  • Can be used in hot-air burners
  • Suitable for control of diesel burners or gas burners in accordance with EN 298: 2012
  • With QRA53 / QRA55 / ionization probe flame detector
  • By monitoring air pressure

Features of Siemens Relay Diesel burner Model LAL1.25

  • Operating temperature range: +60 ~ (-20) degrees Celsius
  • Ambient temperature range: +60 ~ (-20) degrees Celsius
  • Degree of protection: IP40
  • Power consumption during operation: 3.5 volts amp
  • Working humidity and ambient humidity: less than 95% RH
  • made in Germany

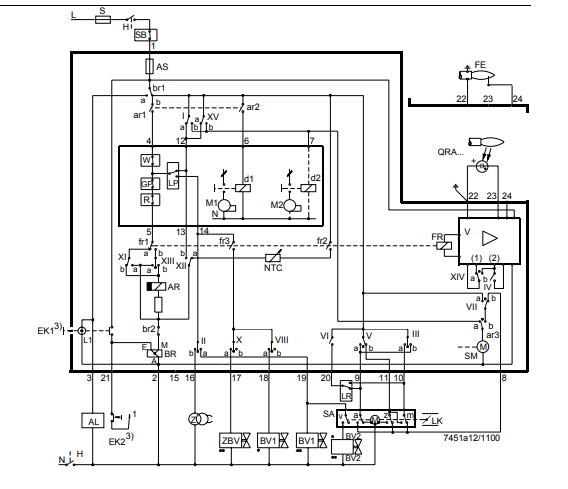

Connections of Siemens Relay Diesel burner Model LAL1.25

Siemens Relay Diesel burner Model LAL1.25 - connections

Warranty and after-sale services of Siemens Relay Diesel burner Model LAL1.25

The company approves the originality and physical health of the Siemens Relay Diesel burner Model LAL1.25.
In the reference site and DAMATAJHIZ store, various types of Siemens burner relays have been provided for you, dear customers, in order to create a good feeling of optimal and smart purchase of Siemens relay.
