Tahvieh Arya Air Handling Unit

Tahvieh Arya air handling unit selection and purchase guide

In general, air handling units are among the most widely used air conditioning equipment that is used to regulate temperature and humidity in large centers such as meeting halls, offices, hospitals, commercial centers, etc. in different climatic zones.
Tahvieh Arya company with design engineering and according to valid standards, in aeration capacities of 1000 to 65000 cubic feet per hour (CFM) is produced and introduced to the air conditioning market.
Tahvieh Arya can be ordered in different types of one-zone, multi-zone, horizontally, vertically, and semi-vertically, with upper, upper, and lower positions, and with hygienic structure.
These air handling units use chillers, condensing units, or ice banks to create cooling and to provide heating, use hot water, steam, or electric elements.

Features of Arya air handling unit

• The fans used in the Arya air handling unit are Forward or Backward centrifuges made by reputable domestic companies or at the request of the customer from reputable European brands.
• Tahvieh Arya Company has used steam, water (heat and cold), and direct expansion (DX) coils in these air conditioners. The steam coils are made of Mansmann steel pipe with spiral fin and density (8 to 10 fin per inch) and Water coils and direct expansion are made of copper pipe with plate-fin and density (8 to 14 fin per inch). Also, in Tahvieh Arya air handling units, coils can be selected from copper or aluminum according to the climatic conditions and the customer's request.
• Air handling units of Tahvieh Arya Company have a distillation pan to direct condensed water on the surface of the coil to the outside of the device. According to the customer's request, galvanized, stainless steel, or PVC drip shutters can also be used.
• These air handling units have a filter chamber and generally have an air mixer box. For this purpose, the dampers installed on the air conditioners are of the type of aluminum blades (airfoil) with polyamide gears with suitable and smooth aeration, and it is also possible to install the damper motor. Also, in situations where the need to change the air in the room is felt, filters with very high efficiency are used. To increase the useful life of high-efficiency filters, metal, fiberglass, and amber glass pre-filters are used before installing them.
• In cold climates, where constant heat causes dryness of the air and humidity control is essential, Arya air handling units can be installed with a variety of humidifiers such as steam, electric, needle nozzle, and microprocessor. In case of the need for high humidity in the air conditioner or the use of an evaporative cooling system, one or two bank air washers in three classes 4, 6, and 8, along with electric pumps that can be installed inside and outside the air washer housing are produced.
• Arya air handling units have a frame made of aluminum profiles with polyamide corners and a body made of hot-dip galvanized sheet with two walls, which are covered with electrostatic powder polyester paint. The body and frame of the air conditioner are installed to aluminum profiles by bolts and washers. Also, the connections of all parts of the air handling unit are in the form of bolts and their sealing and airtight is done by the thrust paste.
• It should be noted that if there is a restriction in carrying the device, air handling units are provided in the form of disassembly (several parts), which are assembled after transportation and on-site.

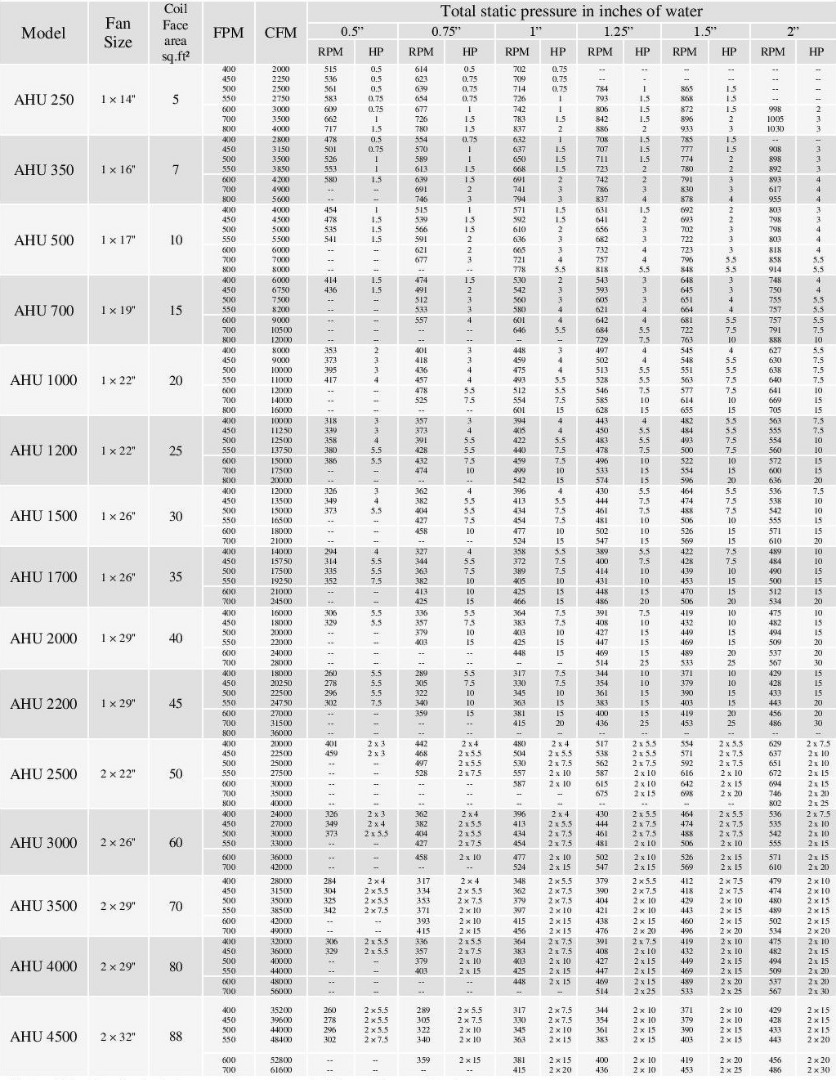

Table of capacity and model of Tahvieh Arya

To see other models and get informed of the air handling unit cost on this website you can click on the underlined words.

Warranty and after-sales service of Tahvieh Arya air handling unit

Tahvieh Arya air handling unit has an 18-month warranty and 10 years of after-sales service.

In the reference and store site of Damatajhiz, the technical specifications and guaranteed prices of all types of air conditioners of Tahvieh Arya Company, with the main guarantee, have been provided for dear customers in order to create a good feeling of optimal and smart purchase.
