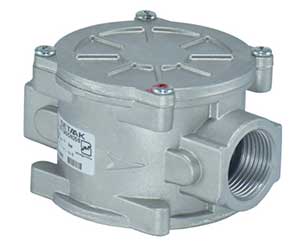

Setaak Gear Gas Filter Model SET345 ''3/4

Guide for selecting and purchasing Setaak gear gas filter 3/4" model SET345

Setaak Company is an Iranian and knowledge-based company and one of the successful manufacturers of safety control equipment such as "Setaak Gear Gas Filter" 3/4 model SET345, which relies on up-to-date technical knowledge, and experienced specialists, as well as advanced machinery and equipment for quality products. And produces in line with the highest global quality assurance standards.

Features of Setaak gear gas filter 3/4" model SET345

• Has the national standard mark of Iran INSO22107 to DN65
• General requirements in accordance with EN13611
• Strength: Group 2
• Temperature range - 10 to 60 degrees Celsius
• Type of gas: natural gas, liquefied gas, city gas, air
• Connection thread: ("DN15 (3/4
• Complies with 10226 EN and 1-7 ISO
• Filter: 50m50 (other filters to order)
• Filter dusting: Compliant with 779EN standard
• Strainer made of synthetic fibers that can be cleaned and washed
• Yield classification: M5 (according to 2012 - EN779)
• Atmospheric dust efficiency (according to 1992 - 1.52 Ashrae): from 50 to 55%
• Trapping efficiency (according to Ashrae 1.52 - 1992): Equivalent to 95%
• Working inlet pressure: up to 2 bar or up to 6 bar

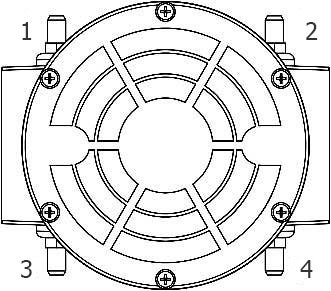

Schematic view (from above) of the Setaak gear gas filter 3/4" model SET345

4: Umbilical position of the pressure gauge

The originality of Setaak gear gas filter 3/4" model SET345

The company confirms the authenticity and physical health of the 3/4 gear stock filter of SET345 model.
