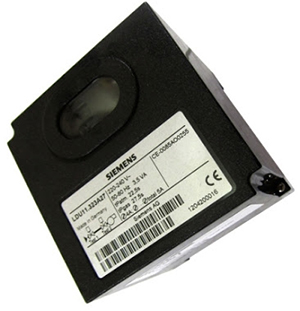

Siemens Leakage detector relay Model LDU11.323A27

Guide to choosing and buying Siemens Leakage detector relay Model LDU11.323A27

Siemens Leakage detector relay Model LDU11.323A27 is one of the successful manufacturers of monitoring and automation control equipment, relying on modern European technical knowledge, experienced specialists, as well as advanced machinery and equipment, and quality products in line with the highest guarantee standards. Produces European quality. Siemens Leakage detector relay Model LDU11.323A27 (control leak) is used to control and detect gas leaks in the burner and is used in the gas line, gas pressure-reducing stations, and gas burners.
In this burner relay, two stages of testing are performed for to leak test. In the first stage, the pressure between the gas pipes is discharged to test the maximum flow and the switch commands off. In the second stage of the test, the pressure between the gas pipes is discharged to test the minimum current and the switch is issued again. If at any stage of the test the switch detects a drop or an excessive increase in gas pressure, the relay will lock and prevent the burner from starting.

Features of Siemens Leakage detector relay Model LDU11.323A27

• Disconnect the switch in case of excessive gas leakage
• Valve leak detection
• Installation between two gas valves for leak detection and operation by 1 or 2 switches
• Manual reset
• Operating temperature range: (60) ~ (-20) degrees Celsius
• Degree of protection: IP40
• Power consumption during operation: 2.5 volts amp
• made in Germany

Warranty and after-sale services of Siemens Leakage detector relay Model LDU11.323A27

The company approves the originality and physical health of the Siemens Leakage detector relay Model LDU11.323A27.
In the reference site and DamaTajhiz store, various types of Siemens burner relays have been provided for you, dear customers, in order to create a good feeling of optimal and smart purchase of Siemens relay.
