Super Action Industry Steel Water Boiler - SA-WWB-600
- Maximum Working Pressure: 6 bar
- Fuel Type: Fuel Gas, Mazut, Diesel Fuel

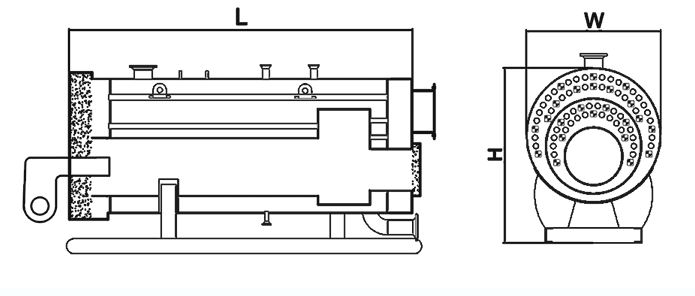

- Dimensions: 2200*1100*1350 mm
- Using returning flame technology
- Using returning flame technology
- Temperature Capacity: 600,000 kCal per Hour
2 years warranty
10years
Super Action Industry Steel Water Boiler - SA-WWB-600 Purchasing Policy and Guidelines
Super Action Industry Steel Water Boiler - SA-WWB-600 is designed and manufactured according to the Iranian national standard number ISIRI 7911 or its British equivalent BS-855. Construction of the Super Action Industry Steel Water Boiler to 400,000 kcal/hr capacity acquires return furnace technology, and for higher capacity of 400,000 uses wet back technology.
Every stage of designation and construction of Super Action Industry steel Water boiler has been performed under the supervision of Iran National Standards Organization (INSO) Technical Inspection Company and the quality control department of the very company. Super Action Industry steel Water boiler - SA-WWB-600 has an Iranian license plate and a quality control booklet.
Equipment and supplies that have been used to design Super Action Industry Steel Water Boiler are made of fire-Resistant sheets 17MN4(DIN17155) and Water-Proof sheets(A516 GR-70), Also the seamless fire-resistant pipes ST-35.8 (DIN-17175) and A106GR-B. All branches of Super Action Industry Steel Water Boilers have been selected according to A105 and A106 ASTM standards. All welds of this product are designed according to ASME Sec.IX standard, and after approval and preparation of WPS and PQR by one of the methods SMAW, MIG, MAG, TIG, etc. are performed with special fillers. For example, in SMAW method, E6010 electrode is used for penetrating welds and E7018 electrode is used for other welds.
Super Action Industry Steel Water Boiler - SA-WWB-600 Other Features:
- The capacity of Super Action Industry Steel Water Boilers is up to 400,000 kcal and applied Return Furnace technology.
- Steam boilers with high capacity and working pressure are designed with wet back technology.
- Super Action Industry Steel Water Boiler other capacities are from 100 to 2500 kg per hour with a working pressure of 6 times.
- Using Fire-Resistance and Water-Proof sheets
- Super Action Company reserves the right to visit the product at the time of production in case of need for inspection and testing of consumables.
Warranty and After-Sales Service of Super Action Industry Steel Water Boiler - SA-WWB-600
If the Super Action Industry Steel Water Boiler - SA-WWB-600 is installed correctly by the authorized people of this company, this boiler has a 2-year warranty and 10-year After-Sales Service from the time of installation.
On this website (Damatajhiz), technical specifications and guaranteed prices of all Super Action Industry Steel Water Boilers, with the Original guarantee, to create the good feeling of optimal and smart purchase have been provided for you dear ones.
