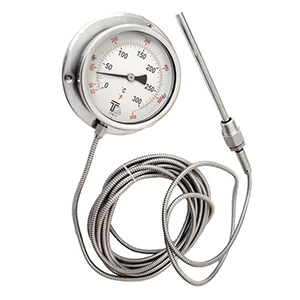

Thermometer Comet TG Plate 10 CM TC100
- Type: analog dry comet
- Type of connection: from the bottom
- Temperature measurement range (Celsius): 120-160/0-200/0-300/0-400/0-500/0-0/0-600
- Trail length: 3 and 6 meters
- Type of temperature sensor: Gas Actuated
Purchasing Guide for Thermometer Comet TG Plate 10 CM TC100
The Thermometer Comet TG Plate 10 CM TC100 is a gas-actuated thermometer model with 3 or 6-meter long trails that is used to measure the temperature of systems that are not easily accessible. In general, actuated gas thermometers or gas thermometers, unlike non-metal thermometers that are directly connected to the system for temperature measurement, are connected to the process by a sequence with a length of more than 1 meter (depending on the thermometer model). Regarding the functioning of gas thermometers, it should be said that these types of thermometers are filled with a gas under pressure, and any change in temperature, however slight, leads to a change in the pressure of the gas inside the thermometer, and as a result, creates a deviation in the Bourdon tube and displays these changes in terms of temperature.
The TC100 series TG thermometer with a stainless steel body and series and a temperature measurement range of 0 to +600 degrees Celsius is one of the most widely used gas thermometers on the market, which is used to measure the temperature of environments and chemical processes that have corrosive properties. It is also used in food, oil, and petrochemical industries.
Features of Thermometer Comet TG Plate 10 CM TC100
- Type: Dry analog comet
- Has a plate with a diameter of 10 cm (4 inches)
- Connection type: vertical (connection from below)
- Connection size: 1/2 inch
- Connection material: stainless steel
- Temperature measurement range in Celsius:
- 0-120/0-160/0-200/0-300/0-400/0-500/0-600
- and 6 meters
- Tail material: stainless steel
- Maximum tolerable pressure of the tail due to temperature increase: 25 bar
- Body material: stainless steel
- High measurement accuracy
- Application in corrosive environments and processes, food industry, oil, petrochemical, etc.
- Type of temperature sensor: Gas Actuated
Dimensions of Thermometer Comet TG Plate 10 CM TC100
Warranty of Thermometer Comet TG Plate 10 CM TC100
The company confirms the authenticity and physical health of the Thermometer Comet TG Plate 10 CM TC100.
In the reference site and store of DamaTajhiz, all kinds of Manometers, with guaranteed prices, are provided for your dear ones, to create a good feeling of optimal and intelligent purchase of the Thermometer.
