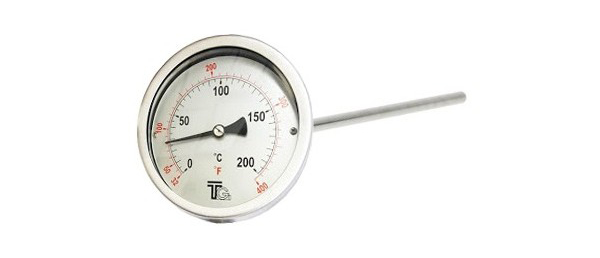

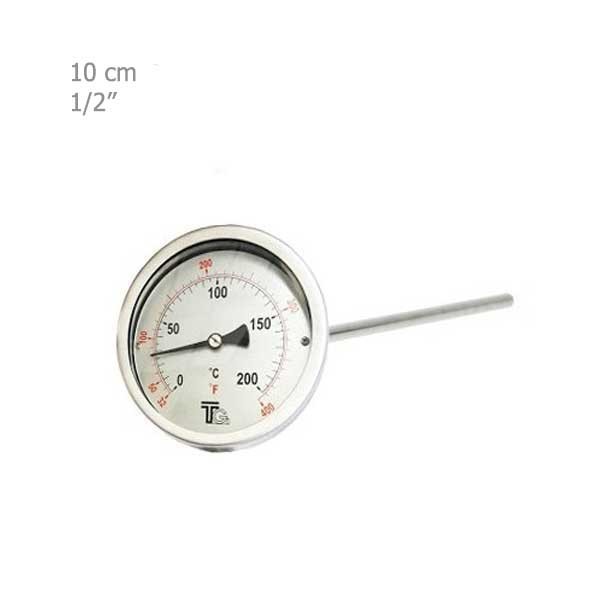

Thermometer Full Steel TG Plate 10 CM TB300
- Type: Horizontal dry analog
- Temperature measurement range (Celsius): 120-160/0-200/0-300/0-400/0-500/0-0/0-600
- Trail length: 100, 200, 300 and 400 mm
- High measurement accuracy
- Application in corrosive environments and processes, food and oil industries, etc.
Purchasing Guide for Thermometer Full Steel TG Plate 10 CM TB300
Thermometer Full Steel TG Plate 10 CM TB300 with a structure made entirely of stainless steel, is one of the best and most well-known non-metal thermometers available in the Iranian market, which is used to measure temperature in environments and processes that have corrosive properties. and it is also used in the food and oil industries.
This thermometer is one of the most widely used types of thermometers in the market, with a 1/2 inch size connection and a 100 mm long tail, which is available in the temperature measurement ranging from 0 to +600 degrees Celsius.
TB300 all-steel TG thermometer can measure the temperature of the desired environment with high accuracy using B-Metal temperature measurement technology. The method of measuring temperature in non-metal thermometers is based on the fact that two different metals with different thermal expansion coefficients are used to measure temperature.
Features of Thermometer Full Steel TG Plate 10 CM TB300
- Type: Dry analog thermometer
- Has a plate with a diameter of 10 cm (4 inches)
- Connection type: horizontal (connection from the back)
- Connection size: 1/2 inch
- Connection material: steel
- Temperature measurement range in Celsius:
- 0-120/0-160/0-200/0-300/0-400/0-500/0-600
- Trail length: 100, 200, 300 and 400 mm
- Tail material: stainless steel
- Maximum tolerable pressure of the tail due to temperature increase: 25 bar
- Body material: stainless steel
- Temperature sensor type: B-metal

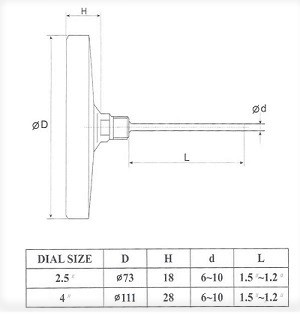

Dimensions of Thermometer Full Steel TG Plate 6 CM TB300
Warranty of Thermometer Full Steel TG Plate 10 CM TB300
The company confirms the authenticity and physical health of the Thermometer Full Steel TG Plate 10 CM TB300.
In the reference site and store of DamaTajhiz, all kinds of Manometers, with guaranteed prices, are provided for your dear ones, to create a good feeling of optimal and intelligent purchase of the Thermometer.
