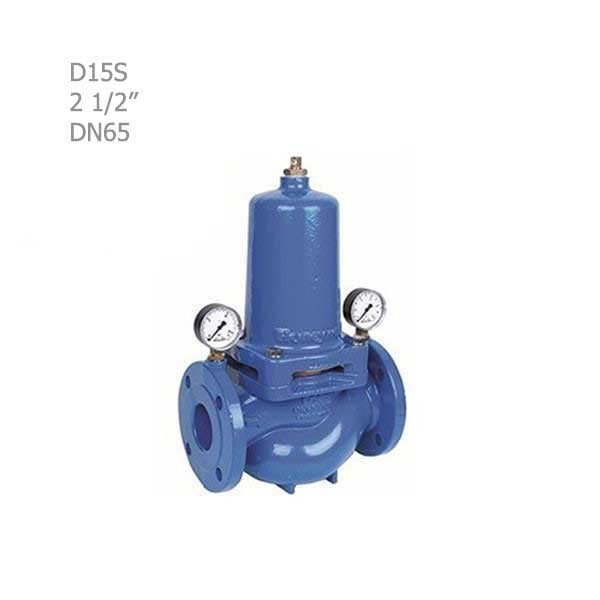

Honeywell flange pressure reducing model D15S-65
- Fluid type: water
- Ability to adjust the outlet pressure for 65 to 100 diameters: 1.5 to 6 bar
- Ability to adjust the outlet pressure for diameters of 150 to 200: 1.5 to 8 times
- Can be used in heating, air conditioning, and hot and cold water systems
- Material: Cast iron
Guide for choosing and buying Honeywell flanged pressure reducing model D15S-65
Pressure reducing valves or pressure reducing valves protect the home installation from overpressure of the water supply source. They can also be used for industrial or commercial applications within their specifications. By installing a pressure-reducing valve, excessive water pressure damage can be prevented. The adjusted pressure remains constant even in the presence of a wide inlet pressure fluctuation. Reducing operating pressure and maintaining it at a constant level minimizes fluctuations in water flow along the path and connection point.

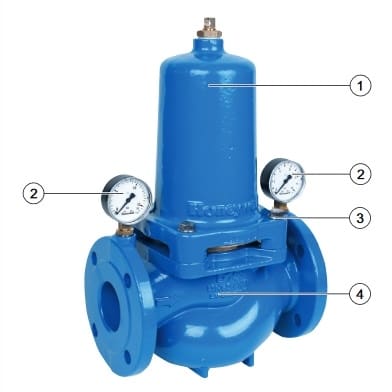

| Ingredients | Material type |
| 1. Spring cap with adjusting screws | Flexible cast iron (EN-GJS-400-15 EN 1563), coated with PA (polyamide) |
| 2. manometer | - |
| 3. Bolts | stainless steel |
4. Location of PN16 protrusions for each ISO 7005-2, EN 1092-2
|
Flexible cast iron (EN-GJS-400-15 EN 1563), coated with PA (polyamide) |
Some specifications of Honeywell flanged pressure reducing valve D15S-65
- Flow coefficient: 230
- Nominal diameter: 65 dn
- Connection type: Flange
- Fluid type: water
- Maximum fluid temperature (degrees Celsius): 65
- Minimum pressure drop: 1 time
- Material: Cast iron
- Inlet pressure: up to 16 bar
- Registered cartridge solution for easy assembly and maintenance
- Insert two cartridges for all nominal widths, which will be useful for a long time
- The adjusting spring is not in direct contact with the wash water
- With inlet and outlet pressure gauges
- Ability to adjust the outlet pressure for 65 to 100 diameters: 1.5 to 6 bar
- Ability to adjust the outlet pressure for diameters of 150 to 200: 1.5 to 8 times
- All materials used are UBA compliant
- All materials are ACS certified

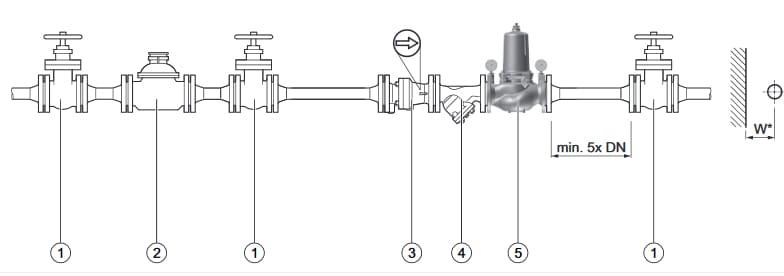

Standard installation sample for pressure-reducing valve
1. Closing valve
2. Water meter
3. Return valve
4. Water purification
5. Pressure-reducing valve
Warranty and originality of Honeywell flanged pressure reducing valve D15S-65
The heating company confirms the physical health and authenticity of the above Honeywell pressure-reducing safety valves.
On the reference site and store of Damatajhiz, all kinds of Honeywell pressure-reducing valves, with guaranteed prices and the original warranty, are provided to create a good feeling of optimal and smart purchase.
