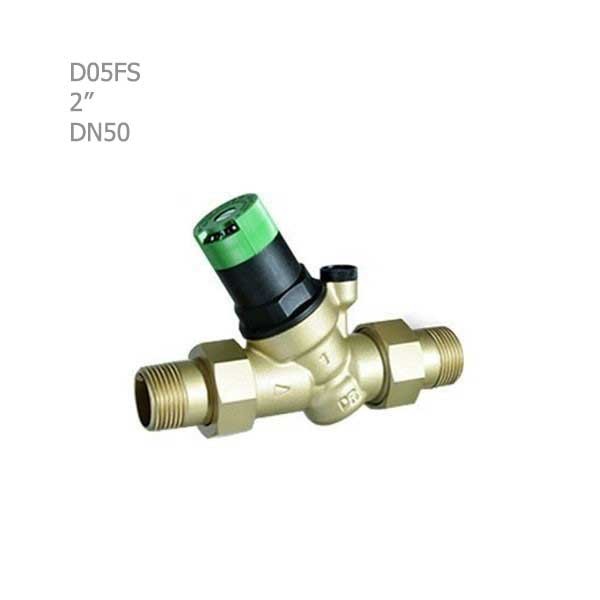

Honeywell pressure reducing valve without filter model D05FS-2
- Fluid type: water
- Connection type: gear
- Material: brass
- Inlet pressure: up to 25 bar
- Outlet pressure setting point: 1/5 to 6 times
Guide for selecting and buying Honeywell pressure reducing valve without filter model D05FS-2
Pressure reducing valves or pressure reducing valves protect the home installation from overpressure of the water supply source. They can also be used for industrial or commercial applications within their specifications. By installing a pressure reducing valve, excessive water pressure damage can be prevented. The adjusted pressure remains constant even in the presence of a wide inlet pressure fluctuation. Reducing operating pressure and maintaining it at a constant level minimizes fluctuations in water flow along the path and connection point.

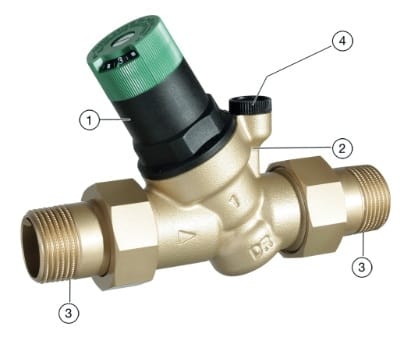

| Components | Material type |
| 1. Spring cap with adjusting opening and adjusting the scale | High-quality synthetic materials |
| 2. Pressure gauge connection location | Corrosion-resistant brass |
| 3. Threaded fittings (Option A) | Brass |
| 4. Pressure gauge connection | - |
Some specifications of Honeywell pressure reducing valve without filter model D05FS-2
- Flow coefficient: 7/7
- Nominal diameter: 70dn
- DVGW certified
- Milk type: brass
- The valve cap is made of high-quality synthetic material and is completely replaceable
- The outlet pressure is adjusted by turning the adjustment knob
- The set pressure is displayed directly on the set point scale
- Also available without fittings
- With internal and external threads "1/2 -" 1, external threads "1/4 1 -" 2
- The adjusting spring is not in direct contact with the wash water
- Adjustable outlet pressure: 1/5 to 6 times
- All materials used are UBA compliant
- All materials are ACS certified
- Inlet pressure: up to 25 bar
- Minimum pressure drop: 1 time
- Can be used in heating, air conditioning, and hot and cold water systems

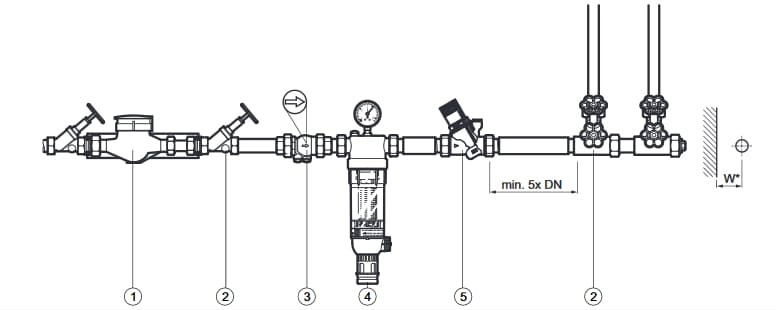

Standard installation sample for pressure-reducing valve
1. Water meter
2. Closing valve
3. Checking valve
4. Filtration system
5. Pressure-reducing valve
Warranty and originality of Honeywell pressure reducing valve without filter model D05FS-2
The heating company confirms the physical health and authenticity of the above pressure-reducing valve.
In the reference site and Damatajhiz store, all kinds of pressure-reducing valves, with guaranteed prices and the original warranty, have been provided for you, dear customers, in order to create a good feeling of optimal and smart purchase.
