Honeywell pressure reducing valve with filter model D06F-11/2
✅ Only for Wholesale
- Fluid type: water
- Material: brass
- Connection type: gear
- Outlet pressure setting point: 1/5 to 6 bar
- Inlet pressure: up to 16 bar
Guide for choosing and buying Honeywell pressure reducing valve with filter model D06F-11/2
Pressure relief valves or pressure reducing valves protect the home installation from overpressure of the water supply source. They can also be used for industrial or commercial applications within their specifications. By installing a pressure relief valve, excessive water pressure damage is prevented. The set pressure also remains constant even in the presence of a wide inlet pressure fluctuation. Reducing operating pressure and maintaining it at a constant level minimizes fluctuations in water flow along the path and connection point.

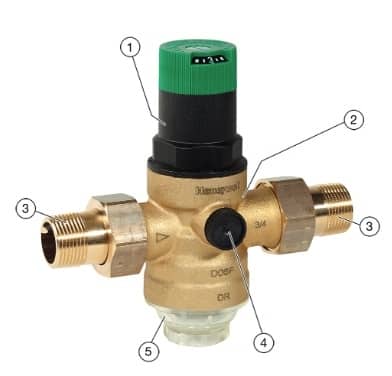

| Components | Material type |
| 1. Spring cap with adjusting opening and adjusting handle | High-quality synthetic materials |
| 2. Pressure gauge connection on both sides | Corrosion-resistant brass |
| 3. Thread connections (A&B options) | Brass |
| 4. Pressure gauge connection | - |
| 5. Filter bowl | Artificial or brass |
Some specifications of Honeywell pressure reducing valve with filter model D06F-11/2
- Flow coefficient: 2/4
- Nominal diameter: 15dn
- DVGW certified
- Milk type: brass
- Smooth chamber: Transparent
- Fully integrated filter
- The set pressure is displayed directly at the specified section
- The adjusting spring is not in direct contact with the wash water
- Adjustable outlet pressure: 1/5 to 6 times
- Also available without fittings
- All materials used are UBA compliant
- All materials are ACS certified
- Maximum fluid temperature (degrees Celsius): 40
- Minimum pressure drop: 1 time
- Can be used in heating, air conditioning, and hot and cold water systems
Standard installation sample for pressure-reducing valve
1. Water meter
2. Closing valve
3. Checking valve
4. Filtration system
5. Pressure-reducing valve
Warranty and originality of Honeywell pressure reducing valve with filter model D06F-11/2
The heating company confirms the physical health and authenticity of the above Honeywell pressure-reducing valve.
In the reference site and Damatajhiz store, all kinds of Honeywell pressure-reducing valves, with guaranteed prices and the original warranty, are provided to create a good feeling of optimal and smart purchase of safety and control valves.
