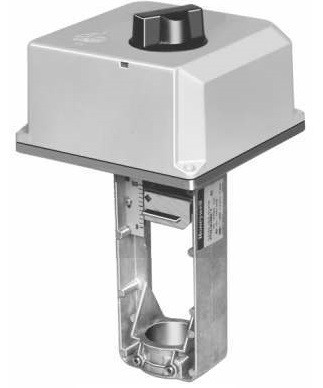

Honeywell electrical actuator gradual ML7421A3004
- Straight coupling (linear)
- Valve sizing range for installation: 1/2 to 3 inches
- Closing force: 1800 Newtons
- Power supply: 24V AC, 14VA
- Temperature performance range: -10 to +50 degrees Celsius
Guide for buying a Honeywell electrical actuator gradual ML7421B3003
Honeywell electrical actuator gradual ML7421B3003 with the gradual operation and direct coupling are suitable for the installation and operation of Honeywell two-way and three-way motorized solenoid valves.
Gradual Honeywell electric actuators along with solenoid valves are among the most important control devices in air conditioning systems. The MN7421B3003 gradual Honeywell electric actuator has an input signal in two forms: 2 to 10 volts direct or 4 to 20 mA with a temperature operating range of -10 to + 50 degrees Celsius.
The maximum speed of the ML7421B3003 Honeywell electric drivetrain is 38 mm and its torque (or closing force) is 1800 Nm. The power consumption of this model is 24V AC with a frequency of 60-50 Hz and 14VA.
Characteristics of Honeywell electrical actuator gradual ML7421B3003
- Performance status: gradual
- Torque (or closing force): 1800 Nm
- Maximum movement course: 38 mm
- Launch time: 210 seconds
- Input signal: (10-2) V or (20-4) mA
- Power supply: 24V AC, 14VA
- Frequency: (60-50) Hz
- Temperature performance range: -10 to +50 degrees Celsius
- Moisture performance range: 5 to 95%
- Valve sizing range for installation: 3 to 6 inches
- Approximate weight: 2.0 kg
- Security standard: IP54
- Valve sizing range for installation: 3 to 6 inches
- Can be installed on Honeywell three-way and two-way valve
- Country of manufacture: Hungary
The originality of the Honeywell electrical actuator gradual ML7421B3003
The company certifies the authenticity and physical health of the Honeywell water flow switch.
In the reference site and Damatajhiz store, all kinds of flow switches are provided for you, dear customers, to create a good feeling of the optimal and smart shopping Relay.
