Benetech digital vibration meter vibrometer GM63B

Purchasing Guide for Buying Benetech digital vibration meter vibrometer GM63B

Benetech is one of the successful manufacturers of analyzers, including the GM63B digital vibration meter (vibrometer). to do Benetech GM63B digital vibration meter (vibrometer) is a self-probe digital vibration meter with the ability to measure acceleration, speed, and displacement.
In general, vibration is a mechanical oscillation around a balance point, which can occur periodically like a clock pendulum or randomly at different intervals of time. A vibration meter or vibrometer is a useful and important device in industries to measure the vibration of the turbine, generator, pump, bearing, engine, fan, etc. to prevent damage and damage caused by vibration beyond the permissible limits.

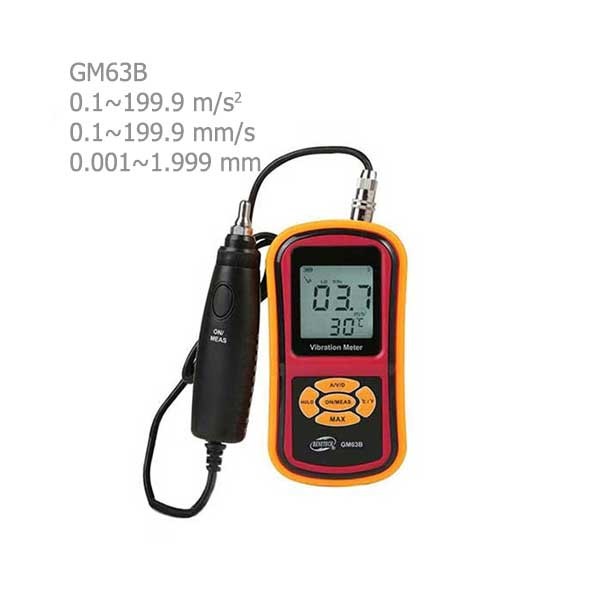

Features of Benetech digital vibration meter vibrometer GM63B

• Digital vibration meter (vibrometer).
• Acceleration measurement range: 0.1~199.9 m/sec
• Speed measurement range: 0.1~199.9 mm/s
• Displacement measurement range: 1.999~0.001 mm
• Accuracy: ±2 digits ±5%

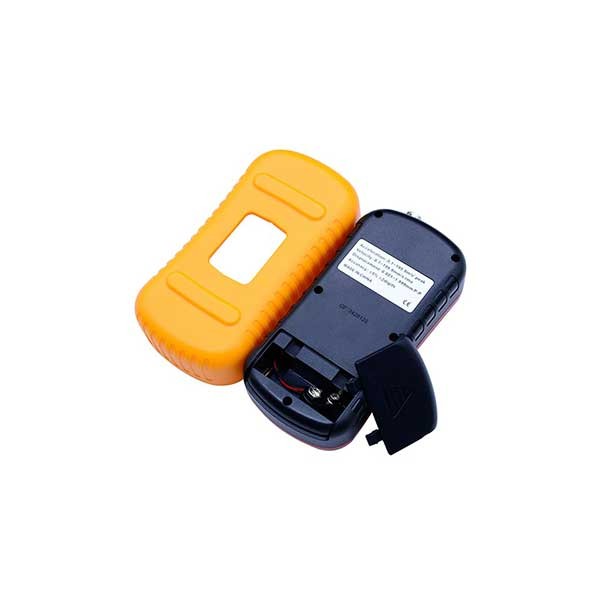

• Power source: 1 9V battery
• Automatic shutdown after 1 minute of inactivity
• Battery life: 20 hours of continuous work

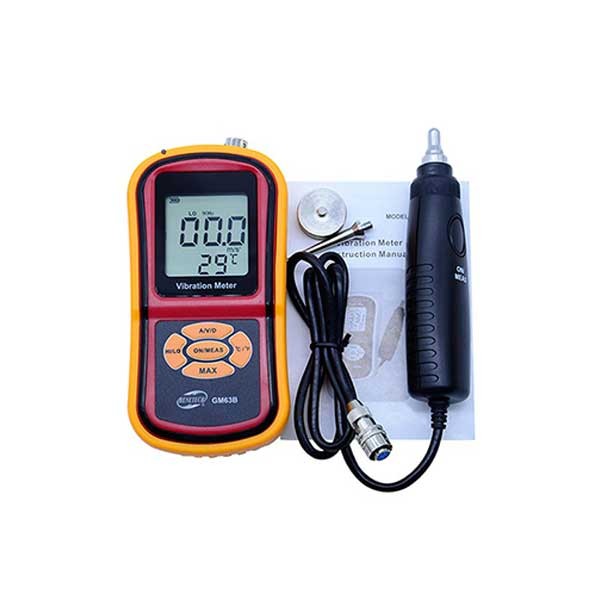

Parts of Benetech digital vibration meter vibrometer GM63B

1. connection point
2. Display
3. off/on
4. High/low-frequency selection in acceleration measurement mode
5. maximum
6. Select the temperature measurement unit
7. Selection of speed/acceleration/displacement measurement mode
8. Keep the power key pressed while measuring
9. Vibration detector (selection of "S"/"L"/magnetic probe)

1. Battery level
2. Dynamic graph
3. Low-frequency 10Hz~1KHz
4. Measured value
5. maximum
6. Temperature and maximum values
7. Select the temperature measurement unit
8. Velocity measurement unit mm/s / Displacement measurement unit mm / Acceleration measurement unit m/s2
9. 1KHz frequency
10. High-frequency 1KHz~15KHz
11. Measuring range
12. Backlight indicator (turns off after 7 seconds of inactivity)

Warranty of Benetech digital vibration meter vibrometer GM63B

DamaTajhiz company confirms the authenticity and physical health of the Benetech digital vibration meter vibrometer GM63B.
On the reference site and store of DamaTajhiz, it is possible to buy all kinds of Vibration meters, to create a good feeling of optimal and smart shopping Of vibrometers, for you, dear customers.
