MI3 Iran Pipe and Machinery Cast Iron Boiler - SUPER M90-5

MI3 Iran Pipe Machinery Cast Iron Boiler-SUPER M90-5 Purchasing Policy

MI3 Iran Pipe and Machinery Cast Iron Boiler - SUPER M90-5 is the latest heating product of Iran Pipe and Machinery Company (MI3) and it is suitable for operations with gas and diesel fuel in 8 models with capacities of 90,300 to 326,800 kCal/hr.

This boiler with an efficiency of over 90%, can be used for 40 meters high (13 floors) and can heat water to a temperature below the boiling point, and also can meet any heating needs in industrial, commercial, office, and place environments and even houses that need to moderate high temperatures.

The thickness of the "6 mm" body of this boiler, while increasing the lifespan and mechanical strength of the boiler, expands the working pressure up to 4 times.

Iran Pipe and Machinery Company with more than half a century experience as the first manufacturer of cast iron boilers in Iran, the first boilers national standard and IMS integrated management system certification keeper, and it’s also known for making the manufacturer of modern European products in the central heating sector.

Soot Holder

At the end of the boiler, a chamber is provided for better conduction and discharge of combustion gases, and this chamber is completely insulated to prevent the spread of gas in the engine room.

Boiler Door

At the onset of the boiler, there is a chamber that can be opened if needed (including the burner holding plate) and when closed, it is completely insulated with insulation from ceramic fibers and fireproof rope to prevent heat transfer and keeping of gases from getting combusted inside the engine room. Also, the burner plate is made correctly to fit the burner, and a sight valve is installed on it to control the flame.

Control Panel Unit

Control Panel Unit is a complete set for adjusting the operation of the boiler with high efficiency and includes the following features:

• Positioning key (disconnect and reconnect the boiler or burn the torch manually).
• Temperature warning light
• Barometer and thermometer that shows the pressure and temperature of the water inside the boiler.
• Protective temperature system for more safety of the control panel
• Boiler water temperature regulator
• Control Panel Unit can increase the safety of the boiler, it also protects the circuits.

On this site (Damatajhiz), the technical specifications and guaranteed prices of the heater, with the main guarantee, have been provided to create a good feeling of optimal and smart purchasing for you.

MI3 Iran Pipe and Machinery Cast Iron Boiler - SUPER M90-5 Other Features:

• The working pressure of MI3 Iran Pipe and Machinery Cast Iron Boiler - SUPER M90-5 is up to 4 bar
• MI3 Iran Pipe and Machinery Cast Iron Boilers - SUPER M90-5 are produced and supplied in 8 different models in capacities of 90,300 to 326,920.
• It can heat water to a temperature below boiling point
• Over 90% efficiency
• Considerable price and warranty of MI3 Iran Pipe and Machinery Cast Iron Boiler - SUPER M90-5 compared to other boilers
• Cast iron blade with high energy absorption
• Special design and beautiful appearance
• Gas and diesel burner
• Heat capacity from 90,300 to 326,800 kCal/hr.
• 5-year warranty
• Permanent after-sale service
• Control Panel Unit with following features:

1. Barometer and Thermometer
2. Control Panel Unit
3. A set of parts that are necessary for assembling the boiler

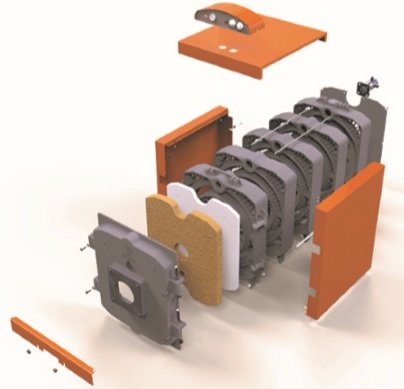

4. The set of parts that make the body of the boiler (this set can be delivered assembled if ordered by the customer).

The supply method of the components provides the possibility of easy installation of the boiler and makes it easy to transport it to any type of place. For easy assembly and installation of the boiler, the relevant instructions are provided to the buyers along with the boiler.

• The final price of MI3 Iran Pipe and Machinery Cast Iron Boiler - SUPER M90-5 will be announced at the time of purchase.
• To see more information about buying cast iron boiler super M90-5, click on the technical specifications on this page.

MI3 Iran Pipe and Machinery Cast Iron Boiler - SUPER M90-5 Benefits Compared to the Boilers:

• The small size of MI3 Iran Pipe and Machinery Cast Iron Boiler - SUPER M90-5 and easy transportation due to the possibility of disassembling the boiler blades from each other.
• Possibility of replacing damaged blades and easy repair of boilers compared to other boilers.
• The fair price and warranty of MI3 Iran Pipe and Machinery Cast Iron Boiler - SUPER M90-5 compared to other boilers.

MI3 Iran Pipe and Machinery Cast Iron Boiler - SUPER M90-5 Capacity Calculation:

• To calculate the approximate power of the required cast iron boiler first, multiply the area of the useful infrastructure of the building by 100 kCal and then add 6000 kCal for each residential unit to supply the hot water uses. For example, for a building with an area of 2500 square meters, useful infrastructure, and 15 apartment units, the required heating power of the boiler is (15 × 6000) + (100 × 2500) = 340,000 kCal.
• To calculate the capacity of the required MI3 Iran Pipe and Machinery Cast Iron Boiler - SUPER M90-5, based on the number of units, area, and type of the building, the presence or absence of a hot water pool, etc., you can consult with the experts of Damatajhiz.
• Furthermore, after the mentioning calculation, add a more 20% to the calculated capacity of the engine a reliability coefficient.
• The most important thing about using MI3 Iran Pipe and Machinery Cast Iron Boilers is the limitation of working pressure and the need to seal the bushing between the blades of the cast iron boiler after installation.
• If the number of apartment units is more than 6, using 2 central heating boilers parallel to each other in the engine room, each of which has 70% of the required capacity, will ensure the stable supply of heating and hot water required for the building.
• Since the installation of all the main equipment of the engine room, including the central heating boiler on the concrete foundation has already been done with appropriate dimensions according to the location plan and exactly where the equipment is located, so before installing the main equipment of the engine room, install the required concrete foundation according to the defined dimensions and standards.

Warranty and After-Sale Service of MI3 Iran Pipe and Machinery Cast Iron Boiler - SUPER M90-5 :

The warranty period of MI3 Iran Pipe and Machinery Cast Iron Boiler - SUPER M90-5 is 5 years, starts from the time of delivery, and permanent after-sales service, while these products have free shipping and installation.
