DamaTajhiz Hot Water Unit Heater 54000 BTU/HR Model DT.U50W

Buying Guide for Hot Water Unit Heater by DamaTajhiz – Model DT.U50W

The 54000BTU/HR hot water unit heater by DamaTajhiz, model DT.U50W, is a device equipped with an axial fan or blower that directs air through the coil and circulates it within the heated space.

The 54000BTU/HR hot water unit heater by DamaTajhiz, model DT.U50W, uses hot water from the central boiler system to heat large spaces such as indoor halls, factory floors, workshops, warehouses, large retail stores, and more.

In general, the hot water entering the heating coils of DamaTajhiz hot water unit heaters is pumped through properly sized piping from the building’s central boiler room to the location of each unit heater.

Before selecting the capacity and number of unit heaters, first calculate the heating load of the hall, then determine the layout and arrangement of the unit heaters based on their heating capacity and air throw range. Unit Heater (For assistance, you may also consult with the heating sales specialist at DamaTajhiz.)

DamaTajhiz – Thousands of Products for Thousands of Projects (Since 2004)

Features of 54000BTU/HR Hot Water Unit Heater by DamaTajhiz – Model DT.U50W

Key features of the 54000BTU/HR hot water unit heater by DamaTajhiz, model DT.U50W, include:

• The body is made from 1mm galvanized sheet with electrostatic powder coating. Upon customer request, it can also be manufactured using decorative panels, aluminum, or stainless steel.
• Hot water unit heaters are available in both single-speed and two-speed models using reliable Damandeh electric motors, offering 900 RPM and 1400 RPM options to achieve different heating capacities.
• Model DT.U50W is equipped with a finned copper coil (3/8 inch), through which hot or boiling water flows as the thermal energy carrier. (5/8 inch copper coil available upon request.)
• Includes an adjustable-blade air outlet damper that allows the direction of the airflow to be set toward different areas.
• Equipped with a cabinet (enclosure) that houses the fan and coil, with the outlet damper mounted on the unit.
• The on/off command for the blower motor is issued via a thermostat installed in an appropriate location inside the hall.
• This unit has compact dimensions, takes up minimal space, delivers excellent heating, distributes heat effectively, and quickly warms up large areas.

Note: Although these hot water unit heaters are primarily designed for heating when connected to a central boiler system, they can also (upon customer request) be equipped with an extra coil row and drain pan to provide limited cooling during the summer when connected to a chiller or other cooling systems.

In practice, the hot water unit heater is connected to the central heating system for heating purposes, and for cooling, it can be connected to various HVAC systems such as chillers with an additional coil and drain tray.

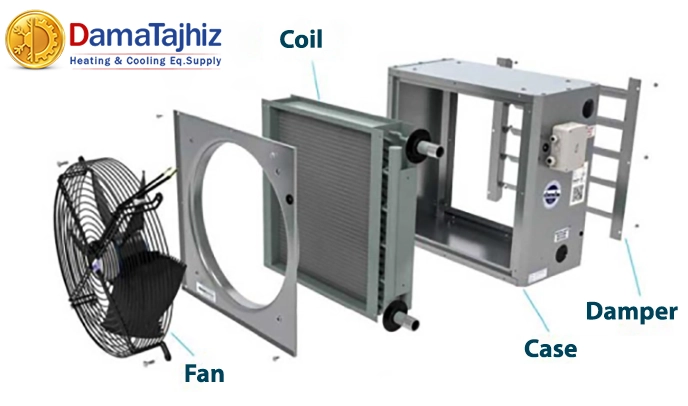

Main Components of the Hot Water Unit Heater by DamaTajhiz – Model DT.U50W

The main components of the 54000BTU/HR hot water unit heater by DamaTajhiz – model DT.U50W – include:

• Fan:
  To move air through the coil and circulate it within the hall
• Heating Coil:
  Provides heating by warming up water and distributing heat to the environment
• Body and Structure:
  Metal casing with electrostatic powder coating, offering high durability and long service life
• Air Outlet Damper:
  Mounted at the outlet to control airflow direction and spread warm air evenly to various areas

DamaTajhiz – Thousands of Products for Thousands of Projects (Since 2004)

Advantages of 54000BTU/HR Hot Water Unit Heater by DamaTajhiz – Model DT.U50W

Advantages of the 54000BTU/HR hot water unit heater include:

• No need for a chimney or flue
• High efficiency, performance, and long service life
• Faster heating and cooling of the space
• Capable of delivering uniform and rapid heat
• Ideal for large and high-ceiling spaces
• Compact and lightweight, easy to install and operate
• Optional cooling capability when connected to chillers, etc. (based on customer request)
• Precise temperature control using advanced control systems to minimize energy loss

Purchase and Warranty Information for 54000BTU/HR Hot Water Unit Heater by DamaTajhiz – Model DT.U50W

The 54000BTU/HR hot water unit heater, model DT.U50W, comes with a 15-month DamaTajhiz Golden Warranty and 10 years of after-sales service.

• At DamaTajhiz – the specialized reference hub – technical information and guaranteed pricing for various unit heaters with Golden Warranty are available to ensure you experience a smart and optimal purchase.
• For detailed technical specifications on buying DamaTajhiz unit heaters, click the "Technical Specifications" section on each product page.
