Guide to Choose and Buy Iran Radiator Gasoline Burner PDE 0

Iran Radiator is one of the most highly-recognized active brands in producing heating equipment. This company has begun to produce burner since mid-1991. Desirable technical quality and significantly convenient after-sales service are some of the features of Iran Radiator products.

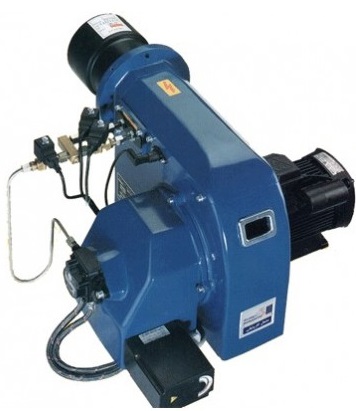

Iran Radiator Gasoil Burner PDE 0 is proper for heating the hot water boiler, engine room steam, supplying hot consumption water, heating system, and industrial spaces.

When you want to choose Iran Radiator Gasoline Burner PDE 0, you should pay attention to the diameter pipe of the muzzle brake of the burner to allow the possibility of entering this pipe into the boiler and installing the burner.

It is necessary to install gasoline filters or gasoline nozzles in the path of gasoline combustion to burner based on the capacity of the gasoline burner with approved technical specifications.

Iran Radiator Company fully supports its products with more than 1000 authorized after-sales service centers throughout the country.

Models of this burner provided after the 700,000 kcal model have been equipped with an electrical enclosure. The amount of liters of gasoline consumed per hour is obtained by dividing the maximum heating power calorie of gasoline burners by 8,500.

Features of Iran Radiator Gasoline Burner PDE 0

• Single-stage combustion
• Manual damper
• Gasoline pump
• Equipped with electronic eye and solenoid valve
• The consumption power of its electrical motor is single-phase.

Performance of the Gasoline Burner

• In gasoline burners, the electrical motor rotates the pump axis of the burner in addition to moving the fan aeration axis.


• Centrifuge fan is used as the aeration fan of the gasoline burners which is installed on the electrical motor axis of the burner with 2,900 revolutions.


• The aeration fan moves as the engine starts and then air molecules begin to move between the fan blades. To control the amount of fan air, a damper is placed in the mouth of the suction. The airflow in this damper is controlled manually in small burners and by a servomotor in large burners. Also, the amount of air flowing from the air damper is increased and reduced with respect to the amount of fuel.


• Typically, rotary or geared gasoline pumps are selected for high-pressure burners.

When you want to choose a burner, you should consider the burner capacity nearly 20% more than boiler capacity due to some heat losses and incomplete fuel combustion efficiency in burners.

• The fuel combustion efficiency of different types of burners is reduced by about 4% per every 300 meters’ elevation above sea level due to the decrement in air concentration.
• The thermal value of each liter of gasoline is approximately equal to 8,500 Kcal.
• The thermal value of each kilogram of gasoline is roughly equal to 10,500 Kcal.

Warranty of Iran Radiator Gasoline Burner PDE 0

Iran Radiator Gasoline Burner PDE 0 has a one-year warranty from Iran Radiator Company.

Technical information, as well as burner prices with original warranties, are available in the DamaTajhiz reference and store website for people to make informed and optimized purchasing decisions.
