Absal Evaporative Air Cooler AC 40

Grade5
1 Review
ابعاد (ارتفاع، طول، عرض): 100*87*87 سانتیمتر برای مساحت 60 تا 90 متر مربع(براساس شرایط) دارای قدرت موتور 1/3 اسب بخار
  • Dimensions (L, W, H): 87*87*100
  • For 60-90 square meters of area (depending on conditions)
  • Engine Power (HP): 1/3
  • Having usability of E-switch and remote control

پرداخت اقساطی

مجموعه دمـاتجهیــز امکان خرید اقساطی کالاهای سایت را فراهم نموده است. فرایند خرید اقساطی از این روش طی مدت ۱۰ الی ۱۵ روز انجام می شود و...
اطلاعات بیشتر و ثبت سفارش >
New
View all products of آبسال

Purchasing Guide for Absal Evaporative Air Cooler AC 40

Using Absal Evaporative Air Cooler AC 40 is suitable for most zones in Iran that have a warm and dry climate in the summer, but they are not suitable for zones with warm and wet climates (sultry).
All Evaporative Air Coolers of Absal Co. have galvanized shells and functionality with single-phase and 220 V. electricity.
Absal Evaporative Air Cooler AC 40 is suitable for space with an area of 60 to 90 Sqm.
The butterfly of this A/C is impact resistant and does not absorb particles. Its shell is made of a high-quality galvanized sheet and has been coated with a thick layer of coating powder to have a long life.

Features of Absal Evaporative Air Cooler AC 40

  • Low-consumption and cost-effective compared to other similar home appliance
  • The rotary valve of air adjustment and air movability of favorable angles
  • There is no vibration and noise while operating due to being integrated and balanced the butterfly in Absal Evaporative Air Cooler AC 40, as a result, bearings, and A/C have a long life. Its new water supply system causes coolness input of A/C and prevents water from pouring on the electromotor; as a result, the motor cannot be damaged due to electric shock.
  • Having usability of E-switch and remote control.
  • Straws with an equal thickness on all surfaces, produced by automatic systems, cause optimal airflow and largely prevents from penetration of dust into the room.

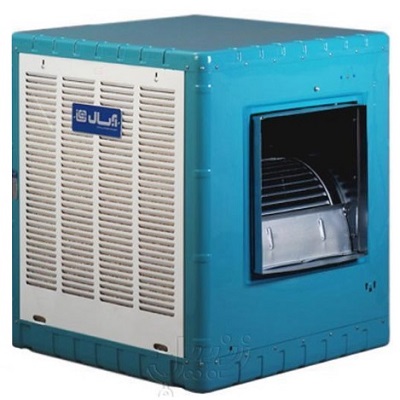

    َAbsal Evaporative Air Cooler AC40

Selection of capacity and ducting of Absal water cooler

  • In order to calculate the approximate capacity of water cooler required in weather conditions like Tehran for apartments that are located in the middle floors of the building and their roofs are not exposed to sunlight and ducting their coolers based on the correct methods (explanations below) For apartments up to 70 square meters, you can use AC35 Absal water cooler / for apartments up to 90 square meters from Absal AC40 model / for apartments up to 110 square meters from Absal AC55 model / for apartments up to 140 square meters from water coolers Use AC70 Absal model.
  • If the apartment unit you are looking for is on the top floor of the building and its roof is directly exposed to the intense and hot summer sun, in compliance with the other conditions listed above, for an apartment up to 50 square meters of a water cooler similar to the AC35 Absal model/ for an apartment up to 60 square meters, use the AC40 Absal model/ for apartments up to 70 square meters, use the AC55 Absal model/ for apartments up to 90 square meters, use the AC70 Absal water cooler.
  • If the installation location of the water cooler you need is on the roof of the building, please pay attention to the dimensions of the water cooler you need (which is given in the technical specifications table) and the possibility of it passing through the roof of the building.
  • The dimensions of the water cooler channel should be considered larger than the dimensions of the air outlet of the cooler, otherwise the volume of air will condense when passing through the channel and prevent the proper flow of air through the cooler channel. In other words, the more suitable channel dimensions. The static pressure of the fan will be less for the passage of air, and as a result, the amount of ventilation and cooling of the water cooler will increase.
  • The cross section of the air outlet channel from the water cooler is at least 1600 square centimeters (equivalent to 40x40 cm) for AC35 models and at least 2300 square centimeters (equivalent to 48x48 cm) for AC 40 models and at least 2500 cm for AC 55 models. square (equivalent to 50 x 50 cm) and for AC 70 models at least 3000 square cm (equivalent to 55 x 55 cm) should be considered (obviously, the exact dimensions are based on the length of the channel path, the required air volume and calculated by the dactylator be made
  • The amount of ventilation and coolness created by water coolers completely depends on the compliance with the principles of ducting engineering, and in general, it is necessary to calculate the ducting of the cooler by installation engineers using a dactylator, as well as taking into account the standards for changing the path angle (internal arc radius). and changing the dimensions of the channels (with a maximum angle of 15 degrees) and if this issue is not taken into account, the expectation of creating cool air by the water cooler will not be fulfilled, and as it can be seen, nowadays consumers have to resort to other cooling systems due to this defect. And they resort to high consumption such as split coolers.

The points should be taken into consideration after purchasing Absal A/C

  1. Regarding air contamination and the existence of salt in the water causing sediment on the shell and straw of A/C, it is necessary to annually exchange straw after 1500 hours of A/C function and or at least at the beginning of a season of A/C start-up.
  2. Prevent direct sunlight on the A/C by a canopy and in case more than 2 M. of A/C duct length is exposed to sunlight, it is necessary to insulate the A/C duct.

This site provides technical specifications, as well as after-sales services for Evaporative Cooler prices, with a manufacturer's warranty, to create a sense of smart buying.

Warranty and After-Sales Service of Absal Evaporative Air Cooler AC 40

Absal Evaporative Air Cooler AC 40 is provided with 24 months warranty and 10 years of after-sales service.
