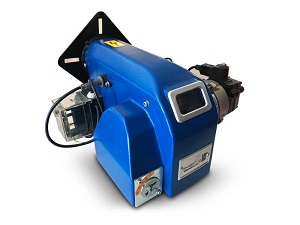

Iran Radiator Gas-fuel Burner JGN 80/0

Guide to Choose and Buy Iran Radiator Gas-fuel Burner JGN 80/0

Iran Radiator is one of the most highly-recognized active brands in producing heating equipment. This company began to build Burner in mid-1991. Desirable technical quality and significantly convenient after-sales service are some of the features of Iran Radiator products.

We provide technical information and prices of Burners with original warranties on the DamaTajhiz reference and store pages so that our dear customers can make a well-informed and intelligent buying decision.

Features of Iran Radiator Gas-fuel Burner JGN 80/0

• Iran Radiator Gas-fuel Burner JGN 80/0 works with urban natural gas and requires appropriate gas pressure based on its capacity and thermal power. The proper gas pressure needed for Iran Radiator Gas-fuel Burner JGN 80/0 (even up to 800,000 Kcal capacity) is equal to 1.4 pounds or 17.5 millibars (urban gas pressure). At the same time, this amount is equal to 2 pounds or 140 millibars (industrial gas pressure) for higher capacities.
• Generally, the Iran Radiator Gas-fuel Burner JGN 80/0's electrical enclosure is integrated and connected to the Burner. Any possible change in the price of Iran Radiator gas burners is announced at the time of purchase inquiry.
• When you choose Iran Radiator Gas-fuel Burner JGN 80/0, you should pay attention to the diameter pipe of the muzzle brake of the Burner to allow the possibility of entering this pipe to the boiler installing the Burner.
• Iran Radiator burners provided after the 800,000 kcal model have an electrical enclosure.
• The maximum amount of gas (in cubic meters per hour) consumed by Iran Radiator Gas-fuel Burner JGN 80/0 is calculated by dividing its full heating power by 9,200.
• Among the most essential required equipment of the gas line in gas burners is installing a gas filter with appropriate size and pressure after the quarter round valve of gas and before the gas regulator and impact or gradual gas solenoid valve of the Burner. It is necessary to use a balancer at the beginning of the gas line to adjust and balance the minor supply gas pressure variations of gas burner power with the required size and discharge of the Burner gas when the supply gas line pressure on the Burner is 2 pounds. Also, it is necessary to install a gas regulator at the beginning of the gas line with the appropriate size, pressure, and gas discharge, if the supply gas pressure of the Burner is higher than 2 pounds (15 or 30 pounds to a maximum of 60 pounds).

Performance of Iran Radiator Gas-fuel Burner JGN 80/0

• A gas burner is designed for the combustion of natural gas. A solenoid valve controls the required gas for the explosion in these burners after passing through a gas filter, and the air needed for their combustion is supplied by a blower installed on the engine axis.
• The discharge of the incoming air is controlled manually or automatically based on its capacity by the air damper installed on the body of the Burner.
• The gas flow passes through a filter; then, it is mixed with the combustion air and becomes ready for combustion. Suppose the combustion air pressure is reduced less than a threshold or gas pressure becomes greater or less than the desired value. In that case, this will be felt by the embedded pressure sensors, and then Burner is switched off by the pressure of air and gas switches through the relay command.
• In terms of performance, gas burners are divided into blower or fan and without a fan (fanless) (soundless). The Burner of the apartment packages is a silent (soundless) and non-blower gas burner.

Adjusting the Fuel and Air of Iran Radiator Gas-fuel Burner JGN 80/0

Adjusting the fuel/air ratio precisely has resulted in complete fuel combustion. The combustion efficiency is increased by adjusting this relative much more accurately, resulting in reduced required fuel. Small burners use the manual damper to adapt the air needed for Burner's combustion, while the automatic damper provides this setting in large burners. However, the air damper of large burners must be adjusted again in each season due to the variable temperature of the engine room boiler and its humidity over the year. Nowadays, modern burners are equipped with an intelligent control system (PLC) that automatically adjusts the ratio between fuel and air during a day and all seasons.

• When choosing a burner, you should consider the burner capacity nearly 20% more than boiler capacity due to some heat losses and incomplete fuel combustion efficiency in burners.
• The fuel combustion efficiency of different burners is reduced by about 4% per every 300 meters' elevation above sea level due to the decrement in air concentration.
• The thermal value of each cubic meter of natural gas is approximately equal to 9200 Kcal.
• The thermal value of each liter of gasoline is approximately equal to 8500 Kcal.
• The thermal value of each kilogram of gasoline is roughly equal to 10,500 Kcal.

Warranty of Iran Radiator Gas-fuel Burner JGN 80/0

Iran Radiator Gas-fuel Burner JGN 80/0 burner has a one-year warranty Iran Radiator Company.
