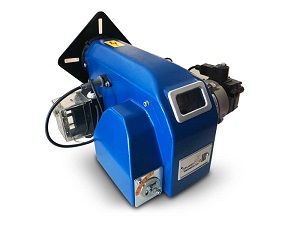

Iran Radiator Gas-fuel Burner IG 2100

حداکثر قدرت گرمایش: 2.100.000 Kcal/hr سوخت مصرفی: گاز طبیعی نحوه احتراق: دو مرحله ای قدرت موتور: 5.5 KW برق مصرفی: سه فاز
  • Maximum heating power: 2,100,000 Kcal / hr
  • Fuel consumption: natural gas
  • Combustion mode: two stage
  • Engine power: 5.5 KW
  • Power consumption: three-phases

Warranty :

1 year Iran Radiator warranty

After-sale Services :

10 years

inquiry

پرداخت اقساطی

مجموعه دمـاتجهیــز امکان خرید اقساطی کالاهای سایت را فراهم نموده است. فرایند خرید اقساطی از این روش طی مدت ۱۰ الی ۱۵ روز انجام می شود و...
اطلاعات بیشتر و ثبت سفارش >
New
View all products of ایران رادیاتور

Guide to Choose and Buy Iran Radiator Gas-fuel Burner IG 2100

Iran Radiator is one of the most highly-recognized active brands in producing heating equipment. This company has begun to produce burner since mid-1991. Desirable technical quality and significantly convenient after-sales service are some of the features of Iran Radiator products.

In order to give a good sense of optimized and intelligent buy to our dear customers, the technical information and guaranteed prices of Iran Radiator Gas-Burner IG 2100 with original warranty are provided on DamaTajhiz reference and store site.

Features of Iran Radiator Gas-fuel Burner IG 2100

  • Iran Radiator Gas-fuel Burner IG 2100 works with urban natural gas and requires appropriate gas pressure based on its capacity and thermal power. The proper and required gas pressure for Iran Radiator Gas-fuel Burner IG 2100 (even up to 800,000 Kcal capacity) is equal to 1.4 pounds or 17.5 millibars (urban gas pressure) while this amount is considered to be equal to 2 pounds or 140 millibars (industrial gas pressure) for higher capacities.
  • Generally, Iran Radiator Gas-fuel Burner IG 2100 's electrical enclosure is integrated and connected to the burner. Any possible change in the price of Iran Radiator gas burners is announced at the time of purchase inquiry.

  • When you want to choose Iran Radiator Gas-fuel Burner IG 2100, you should pay attention to the diameter pipe of the muzzle brake of the burner to allow the possibility of entering this pipe into the boiler and installing the burner.

  • Iran Radiator burners which are provided after the 800,000 kcal model have been equipped with an electrical enclosure.

  • The maximum amount of gas (in cubic meters per hour) consumed by Iran Radiator Gas-fuel Burner IG 2100 is calculated by dividing its maximum heating power by 9,200.

  • Among the most important required equipment of the gas line in gas burners is the installation of the gas filter with appropriate size and pressure after the quarter round valve of gas and before gas regulator as well as impact or gradual gas solenoid valve of the burner. It is necessary to use a balancer at the beginning of the gas line to adjust and balance the little supply gas pressure variations of gas burner power with the required size and discharge of the gas of the burner when the supply gas line pressure of the burner is 2 pounds. Also, it is necessary to install a gas regulator at the beginning of the gas line with the appropriate size, pressure, and gas discharge, if the supply gas pressure of the burner is higher than 2 pounds (15 or 30 pounds to a maximum of 60 pounds).

Iran Radiator Gas-fuel Burner IG 2100

Performance of Iran Radiator Gas-fuel Burner IG 2100

  • A gas burner is designed for the combustion of natural gas. The required gas for the combustion in these burners is controlled by a solenoid valve after passing through a gas filter and the required air for their combustion is supplied by a blower installed on the engine axis.

  • The discharge of the incoming air is controlled manually or automatically based on its capacity by the air damper installed on the body of the burner.

  • The gas flow passes through a filter, then it is mixed with the combustion air and becomes ready for combustion. If the combustion air pressure is reduced less than a threshold or gas pressure becomes greater or less than the desired value, this will be felt by the embedded pressure sensors and then the burner is switched off by the pressure of air and gas switches through the relay command.

  • In terms of performance, gas burners are divided into blower or fan and without a fan (fanless) (soundless). The burner of the apartment packages is silent (soundless) and non-blower gas burner.

Adjusting the Fuel and Air of Iran Radiator Gas-Fuel Burner

Adjusting the fuel/air ratio precisely has resulted in full fuel combustion. The combustion efficiency is increased by adjusting this relative much more accurately and this has resulted in the reduction of required fuel. Small burners use a manual damper to adjust the required air for the combustion of the burner while this setting in large burners is provided by the automatic damper. However, the air damper of large burners must be adjusted again in each season due to the variable temperature of the engine room boiler and its humidity over the year. Nowadays, modern burners are equipped with an intelligent control system (PLC) that adjusts the ratio between fuel and air during a day and all seasons automatically.

  • When you want to choose a burner, you should consider the burner capacity nearly 20% more than boiler capacity due to some heat losses and incomplete fuel combustion efficiency in burners
  • The fuel combustion efficiency of different types of burners is reduced by about 4% per every 300 meters’ elevation above sea level due to the decrement in air concentration.

  • The thermal value of each cubic meter of natural gas is approximately equal to 9200 Kcal.

  • The thermal value of each liter of gasoline is approximately equal to 8500 Kcal

  • The thermal value of each kilogram of gasoline is roughly equal to 10,500 Kcal

Warranty of Iran Radiator Gas-fuel Burner IG 2100

Iran Radiator Gas-fuel Burner IG 2100 burner has a one-year warranty Iran Radiator Company.

DamaTajhiz's reference and store site provide technical information as well as prices of burners with original warranties in order to aid in making an informed and optimized purchase.
