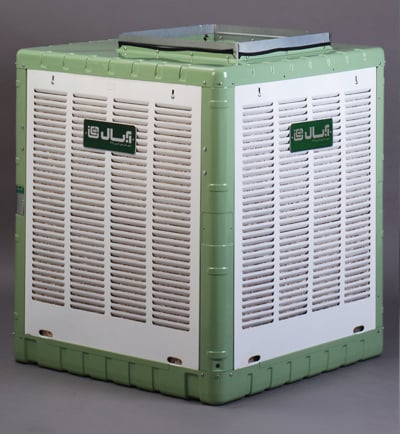

Absal movement from above Evaporative Cooler AC48

buying Guide For Absal movement from above Evaporative Cooler AC48

Absal movement from above Evaporative Cooler AC48, which is also known as a balcony cooler, is designed for places where the entrance to the water cooler channel is through the window or balcony, or terrace of the building.
On the DamaTajhiz reference and store site, technical specifications and guaranteed prices of all types of Absal Evaporative coolers, with the original warranty, have been presented for your dear ones, to create a good feeling of optimal and smart shopping for evaporative coolers.

Advantages of Absal movement from above Evaporative Cooler AC48

• In the Absal water cooler with top ventilation model AC 48, in addition to saving on channel consumption, due to the placement of the outlet opening in the roof of these water coolers, less space is occupied in your balcony, and as a result, installation and service are easy. More is done.
• Because the impeller is integrated and balanced, there is no vibration and noise during operation, as a result, the life of the bearings and other mechanical parts of these coolers is longer.
• The new water supply system in the Absal water cooler with ventilation from above increases the cooling efficiency of the cooler and also prevents water from spilling on the electric motor, and as a result, there is no possibility of burning the water cooler motor.
• Absal water coolers are designed and built in such a way that they create the necessary humidity in hot and dry air and give you cool, comfortable, and pleasant air.
• In the production of high-pressure water coolers, Absal company has designed and manufactured a plastic holder, which, in addition to ease of installation, has eliminated the possible risks of injury to the service worker's hand.
• The body and metal parts of Absal water coolers are made of galvanized sheets and covered with a thick layer of powder paint. As a result, Absal water coolers are very resistant to rust and have beauty, durability, and a very long life.
• Absal water coolers with ventilation from above are equipped with a new water supply system. This system, which was designed by Absal experts, distributes water evenly on the covers in a way that increases the cooling efficiency of the cooler and prevents water from spilling on the electric motor of the cooler, as a result, there is no possibility of burning the electric motor.

Points that you should pay attention to before buying an Absal Evaporative Cooler

• In order to calculate the approximate capacity of water cooler required in weather conditions like Tehran for apartments that are located on the middle floors of the building and their roofs are not exposed to sunlight and ducting their coolers based on the correct methods (explanations below) For apartments up to 70 square meters, you can use Absal AC38 water cooler / for apartments up to 90 square meters, you can use Absal AC48 / for apartments up to 110 square meters, you can use Absal AC58.
• If the apartment unit you are looking for is on the top floor of the building and its roof is directly exposed to the intense and hot summer sun, by observing the other conditions listed above, for apartments up to 50 square meters, the water cooler model AC38 Absal / for apartments up to 60 meters square, use the AC48 Absal model / for apartments up to 70 square meters, use the AC58 Absal model.
• The dimensions of the water cooler channel should be considered larger than the dimensions of the air outlet of the cooler, otherwise, the volume of air will condense when passing through the channel and prevent the proper flow of air through the evaporative cooler channel. In other words, the larger the channel dimensions If it is more suitable, less fan static pressure will be required for air passage and as a result, the amount of ventilation and cooling of the water cooler will increase.
• The cross-section of the air outlet channel from the water cooler is at least 1600 square centimeters (equivalent to 40x40 cm) for AC 38 models and at least 2300 square centimeters (equivalent to 48x48 cm) for AC 48 models and for AC 58 models. At least 2500 square centimeters (equivalent to 50 x 50 cm) should be considered, obviously, the exact dimensions are calculated based on the length of the channel path, the required air volume, and calculated by the Dactylator.
• The amount of ventilation and coolness created by water coolers completely depends on the compliance with the principles of ducting engineering, and in general, it is necessary to calculate the ducting of the cooler by installation engineers using a dactylator, as well as taking into account the standards for changing the path angle (internal arc radius). and changing the dimensions of the channels (with a maximum angle of 15 degrees) if this issue is not taken into account, the expectation of creating cool air by the water cooler will not be met, and as it can be seen, nowadays, due to this problem, consumers have to turn to other cooling systems They resort to high-consumption such as split coolers.

Warranty and After-sale Services for Absal movement from above Evaporative Cooler AC48

Absal movement from above Evaporative Cooler AC48 has a 2-year product warranty and a 5-year warranty for the electric motor, electric board, and electronic control switch.
