Burner relay dual burner MMG 810.1

Guide to choosing and buying Burner Burner relay dual burner MMG 810.1

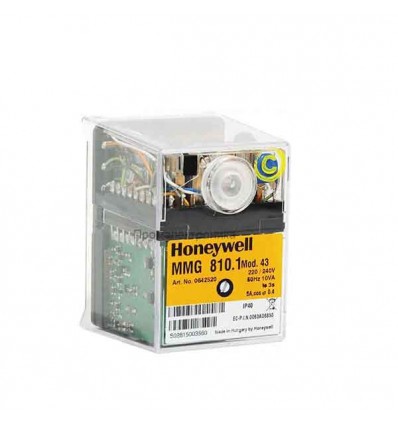

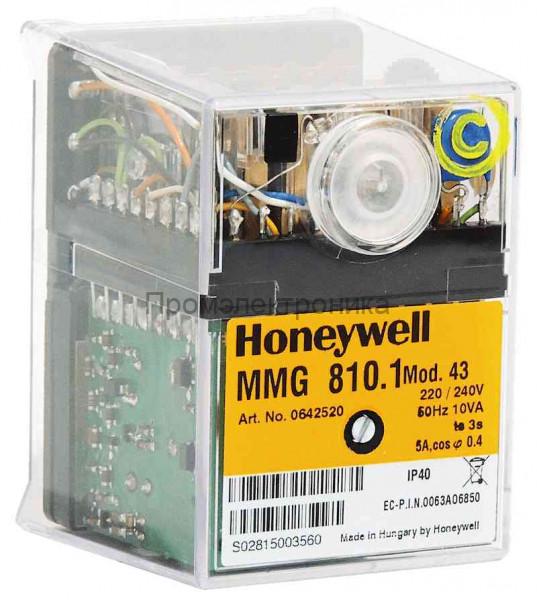

The function of the Honeywell Dual Burner MMG 810.1 relay is to control the operation of the burner. In this way, the ability to control and monitor stage burners or pilot and burner modules and coordinate various stages such as pre-ventilation and ignition and safe time intervals to create the main flame and in case of any problems in creating The flame, like non-sparking, extinguishing or incomplete flame, removes the system from the circuit and gives the necessary wait.

Features of Burner relay dual burner MMG 810.1

• Working temperature: 20 - up to +60 degrees Celsius
• Type of burner used: gas burners
• Country of manufacture: Hungary
• Operating voltage: 220/240 AC
• Frequency: 50/60 Hz (Hz)
• Voltage tolerance: 15 - up to +10%
• Electrical protection standard: IP 40
• Explosion-proof: None
• Power consumption: 12 volts amp
• (tlw) Rivet time: 60 seconds
• (ts) Confirmation time: 3 seconds
• (tvz) Spark time: 3 seconds
• (tn) Time after combustion: 2 seconds
• Terminal type: detachable base
• Connection model: on its own base
• Body alloy type: clear plastic (glass crack)
• Maximum humidity of the working environment: 95% at a temperature of 30 ° C
• Weight: 190 grams
• Isolation: This is the advantage in terms of relay protection that separates the defective part of the circuit from the healthy part.
• High power circuit control: With a multi-volt relay, you can control a multi-volt circuit, and this is certainly a good option for controlling a circuit.
• Economic efficiency: Considering all the above, relays will be an economical option for our circuit system.

Important factors for a protection relay

Operating speed: The average time between fault detection and the appropriate response from the protection relay.
Sensitivity: The minimum current to which the relay reacts.
Stability: The correct reaction of the protection relay against all errors that occur in its protection range.
Detection and selection in case of error: correct detection of the defective part and its separation from the network.

Warranty and after-sales services of Burner relay dual burner MMG 810.1

The company certifies the authenticity and physical health of all types of Honeywell digital thermostats. In the reference site and Damatajhiz store, various thermostats have been provided for you, dear customers, in order to create a good feeling of optimal and innovative purchase of RELAY.
