Honeywell digital fan coil thermostat Model TF428

Guide to choosing and buying Honeywell digital fan coil thermostat Model TF428

Honeywell TF228WN digital fan coil thermostat is one of the newest and most efficient Honeywell thermostats, which is designed with a beautiful design and easy to use, suitable for two-pipe fan coil systems. Honeywell TF228WN digital fan coil thermostat with digital display has the ability to manually or automatically control three fan systems.
RPM (CPH) This thermostat model keeps the room temperature constant relative to the set temperature. The TF228WN thermostat is also equipped with a shutdown timer that shuts off the device at a specified time to save energy.
The TF228WN digital thermostat is designed for a 3-speed fan and valve control in a fan coil system, including:
2-pipe cool only/heat only/manual changeover, Ventilation mode, Manual or automatic 3-speed fan control, Water valve control, Besides, the basic controls, TF228WN features CPH (Cycle
Per Hour) better maintains the room temperature to the setpoint and memorized time off function can automatically turn off the thermostat to save energy.
In addition, the Honeywell Random start-up function would help
to maintain power grid stability.

Features of Honeywell digital thermostat Model TF228WN

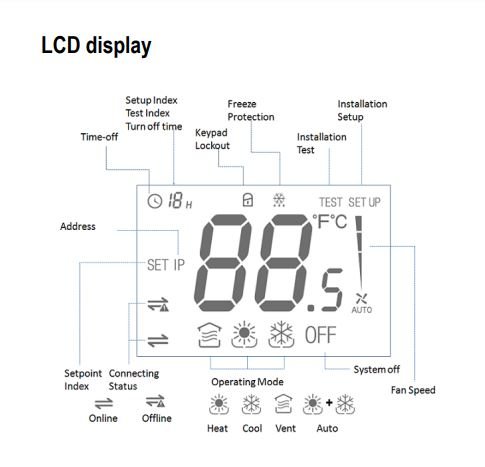

• Has a simple-use LCD display
• PI control with shut-off output and valve connection, key capacity 2 amps
• Manual or automatic control of three fan speeds, the key capacity of 3 amps
• Save blackout time
• energy saving
• Adjustable for four seasons of cooling, heating, fan, automatic (if there is a solenoid valve)
• Ability to change seasons manually
• Display temperature in degrees Celsius or Fahrenheit
• Save settings even during power outages
• Frost protection
• Has four keyboard lock options
• Temperature setting range: 10 to 32 ° C

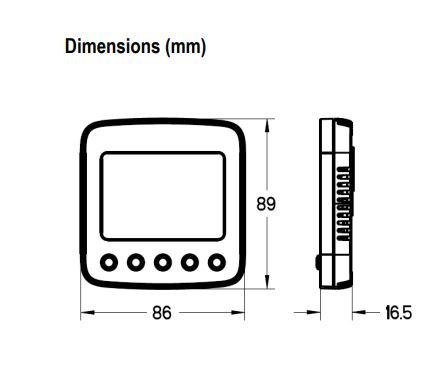

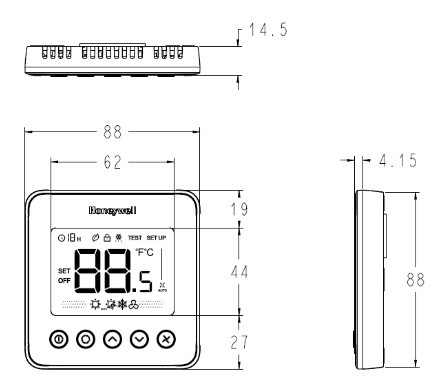

• Dimensions (length, width, depth): 89 * 86 * 16 mm
• Power supply : 220(+10%,-15%)VAC, 50Hz
• Control PI, On/off output
• Accuracy ±1°C at 21°C
• Rating capacity 3A for fan load,
• 2A for zone valve
• Protection class IP20
• Set point range 10 ~ 32°C
• Display range 0 ~ 37°C
• Ambient operating limits 0~ +49°C
• Ambient storage limits -30 ~ +49°C
• Humidity limits 5~90% RH, non-condensing



Warranty and after-sales services of Honeywell digital fan coil thermostat Model TF428

The company approves the authenticity and physical health of all types of Honeywell thermostats.
In the reference site and DamaTajhiz store, all kinds of original Honeywell thermostats have been provided for you, dear customers, in order to create a good feeling of optimal and innovative purchase of Digital thermostats.
