Alfa Laval Plate Heat Exchanger

Alfa Laval company is originally from Sweden and has been established in 1883. This reliable and well-known company is a leader in producing products and providing suitable solutions in the construction of heat transfer systems, water treatment, transfer, and movement of fluids. If you want to check and choose the types of Alfa Laval plate heat exchangers with the most suitable price and technical specifications, timely delivery time, etc., stay with us in the rest of this article to answer your questions about types, capacities, dimensions, etc. Technical specifications and special prices of Alfa Laval plate heat exchanger, please reply!

Features of Alfa Laval plate heat exchanger

- Hard installation

Due to having a very high overall heat transfer coefficient, much smaller dimensions, and higher heat exchange efficiency compared to common shell and tube heat exchangers (such as coil and double wall sources), Alphavale plate heat exchangers are able to instantly and quickly heat water. Supply the required consumables without the need for storage (such as coil and double-walled sources) to the consumer in a completely "hygienic" manner.

- Installing the spool nut and valve
In addition to the necessity of installing a hardener in the cold water inlet to the heat exchangers, it is necessary to install the spool nut and the valve on all the inlet and outlet water pipes of the Alfa Laval heat exchangers in order to perform periodical services and acid washing.

- Required accessories
Due to the necessity of using a one-way valve + two strainers (filters) as well as linear stiffeners (magnetic, electronic, etc.) during the installation and operation of Alfa Laval plate heat exchangers, in the absence of necessary In the above project, at the same time as buying the heat exchanger, order the purchase of these accessories, according to the size of the inlet and outlet pipes to the heat exchanger.

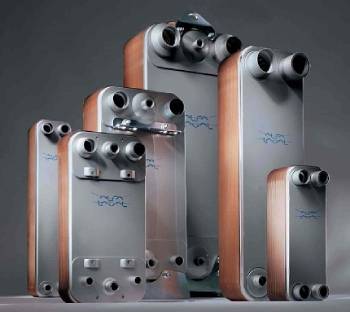

Alfa Laval plate heat exchanger

Buy a plate heat exchanger Alfa Laval

In order to easily choose and purchase the Alfa Laval plate heat exchanger, you must first determine its type and required capacity.

On the site of Damatajhiz's specialized collection, technical information on all types of plate heat exchangers from reputable brands with original warranties has been presented, so that you, dear ones, can enjoy the good feeling of optimal and smart shopping.

Alfa Laval plate heat exchanger prices

You can choose and examine all types of Alfa Laval plate heat exchangers at the best price on the website of Damatajhiz's specialized collection.

The price of the heat exchanger varies according to the variety of models and brands available in the market, it should be noted that the prices presented in the heating equipment collection are up-to-date and the discounts desired by consumers are included in these prices. So that these prices also include the part of guaranteeing the best prices on the Damatajhiz site.

َAlfa Laval plate heat exchanger warranty

All Alfa Laval plate heat exchangers are offered on the specialized Damatajhiz website, with a warranty and after-sales service of official representatives (according to the instructions of the main company).

M² = 10.764 Ft.² Ft.² = 0.0929 M² 1 Atm. = 14.7 P.S.I
1 Gal.(am.) = 3.785 Lit per foot of 3/8 inch pipe length = 0.0982 Ft.²
10.33 meters height of water column = 1 Atm. Each foot of pipe length 1/2 inch = 0.1309 Ft.²
1 M³ = 264.2 Gal.(am) 1M³ = 35.315 Ft.³

Active filters

Alfa Laval plate heat exchanger model CB 27-34

Alfa Laval plate heat exchanger model CB 27-34

  • S.S.316 stainless steel body
  • Working pressure: 45 bar
  • Thermal power: 150,000 Kcal/Hr
  • Inlet and outlet pipe size: cold side 1
  • Inlet and outlet pipe size: hot side 1/4 1
Warranty:

1 Year Warranty

After-sales services:

10 years

Price $0
Alfa Laval plate heat exchanger model CB 27-28

Alfa Laval plate heat exchanger model CB 27-28

  • S.S.316 stainless steel body
  • Working pressure: 45 bar
  • Thermal power: 125.000 Kcal/Hr
  • Inlet and outlet pipe size: cold side 1
  • Inlet and outlet pipe size: hot side 1/4 1

Warranty: 1 year
After-sales service: 10 years
Price $0
Alfa Laval plate heat exchanger model CB 27-24

Alfa Laval plate heat exchanger model CB 27-24

  • S.S.316 stainless steel body
  • Working pressure: 45 bar
  • Thermal power: 100,000 Kcal/Hr
  • Inlet and outlet pipe size: cold side 1
  • Inlet and outlet pipe size: hot side 1/4 1

Warranty: 1 year
After-sales service: 10 years
Price $0
Alfa Laval plate heat exchanger model CB 14-36

Alfa Laval plate heat exchanger model CB 14-36

  • S.S.316 stainless steel body
  • Working pressure: 25 bar
  • Thermal power: 50.000 Kcal/Hr
  • Inlet and outlet pipe size: cold side 3/4
  • Inlet and outlet pipe size: hot side 3/4

Warranty: 1 year
After-sales service: 10 years
Price $0
Alfa Laval plate heat exchanger model BP10-28

Alfa Laval plate heat exchanger model BP10-28

  • S.S.316 stainless steel body
  • Working pressure: 25 bar
  • Thermal power: 40.000 Kcal/Hr
  • Inlet and outlet pipe size: cold side 3/4 1/2
  • Inlet and outlet pipe size: hot side 3/4

Warranty: 1 year
After-sales service: 10 years
Price $0

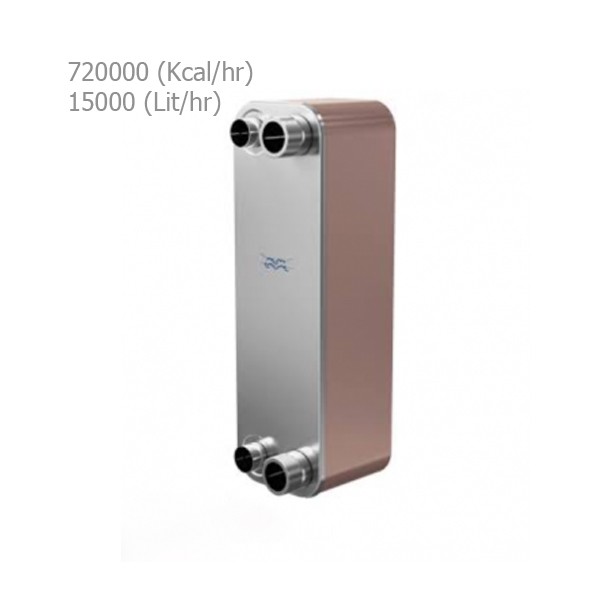

Alfa Laval Plate Heat Exchanger CB110-38M

Alfa Laval Plate Heat Exchanger CB110-38M

  • SS.316 stainless steel body
  • Working pressure: 30 bar
  • Thermal energy: 720,000 kcal/hr
  • Inlet and outlet pipe size: 3/4 cold side
  • Inlet and outlet pipe size: 3/4 warm side
Warranty:

1 Year Warranty

After-sales services:

10 years

Price $0
Alfa Laval Plate Heat Exchanger CB110-30M

Alfa Laval Plate Heat Exchanger CB110-30M

  • SS.316 stainless steel body
  • Working pressure: 30 bar
  • Thermal energy: 480,000 kcal/hr
  • Inlet and outlet pipe size: Cold side 2
  • Inlet and outlet pipe size: Warm side 2
Warranty:

1 Year Warranty

After-sales services:

10 years

Price $0
Alfa Laval Plate Heat Exchanger CB110-24M

Alfa Laval Plate Heat Exchanger CB110-24M

  • S.S.316 stainless steel body
  • Working pressure: 30 bar
  • Thermal power: 400,000 Kcal/Hr
  • Inlet and outlet pipe size: cold side 2
  • Inlet and outlet pipe size: hot side 2
Warranty: 1 year
After-sales service: 10 years
Price $0
Alfa Laval Plate Heat Exchanger CB60-60L

Alfa Laval Plate Heat Exchanger CB60-60L

  • SS.316 stainless steel body
  • Working pressure: 40 bar
  • Thermal energy: 300,000 kcal/hr
  • Inlet and outlet pipe size: Cold side 1
  • Inlet and outlet pipe size: Warm side 1 1/4
Warranty:

1 Year Warranty

After-sales services:

10 years

Price $0
Alfa Laval Plate Heat Exchanger CB60-50L

Alfa Laval Plate Heat Exchanger CB60-50L

  • SS.316 stainless steel body
  • Working pressure: 40 bar
  • Thermal energy: 250,000 kcal/hr
  • Inlet and outlet pipe size: Cold side 1
  • Inlet and outlet pipe size: Warm side 1 1/4
Warranty:

1 Year Warranty

After-sales services:

10 years

Price $0
Alfa Laval Plate Heat Exchanger CB60-40L

Alfa Laval Plate Heat Exchanger CB60-40L

  • S.S.316 stainless steel body
  • Working pressure: 40 bar
  • Thermal power: 200,000 Kcal/Hr
  • Inlet and outlet pipe size: cold side 1
  • Inlet and outlet pipe size: hot side 1/4 1
Warranty:

1 Year Warranty

After-sales services:

10 years

Price $0
