Cassette Ceiling Fan Coil Unit

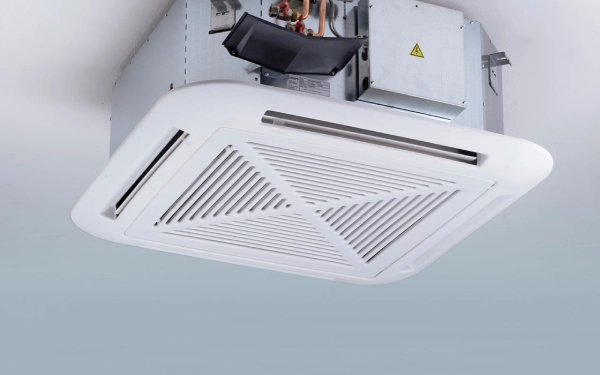

Cassette ceiling fan coil units are one of the most practical and best-selling types of fan coils, the main part of which is placed inside the false ceiling of the building, and only its decorative panel is visible on the ceiling.

This type of fan coil unit is mostly used in stylish and modern buildings such as hotels due to its small installation space and decorative appearance. In the following content the information about the features and specifications of cassette ceiling fan coil units are presented.

Cassette Ceiling Fan Coil Unit Experts' Buying Guide and Price List

A cassette ceiling fan coil unit is one of the types of ceiling fan coils that are usually produced and supplied in capacities of 300 to 1,500 CFM and are typically designed and manufactured in three types: one-way, two-way, and four-way, with the four-way type having the most uniform air distribution.

Installing a cassette ceiling fan coil unit requires a suitable false ceiling for placement in the ceiling and the provision of water and electricity piping.

These fan coil units have a quiet design and uniform air distribution, which is why they have wide applications in office buildings, hotels, commercial centers, and modern residential spaces.

In general, it can be said that cassette ceiling fan coil units are the best option for spaces that value the beauty of the decor, uniform air distribution, and quiet operation.

Cassette Ceiling Fan Coil Unit Components and Operation

The main components and operation of cassette ceiling fan coil units are similar to other types of fan coil units; this means that the device consists of a coil (heat exchanger) and a blower fan that passes the ambient air over the coil and adjusts its temperature.

The components of the cassette ceiling fan coil units include the fan, coils, and other components, which are located in the cubic body of the device. The body is installed above the false ceiling, and the air is thrown into the room from below.

DamaTajhiz HVAC Co.; Engineering, Manufacturing, and Trading Company in the Middle East Since 2004
Review, Selection, and Pricing of HVAC Equipment

Cassette Ceiling Fan Coil Unit Advantages

Among the advantages of cassette ceiling fan coil units, the following can be mentioned:

High capacity and efficiency of the device
Low space requirement for installation
Quiet operation
Comfortable and uniform cooling and heating
Equipped with a thermostat to control the temperature
Equipped with a remote control
Equipped with an internal drain pump
Preserving the environment's decor due to installation in the false ceiling
Better air coverage, especially in four-way models
Suitable for large and crowded spaces due to extensive air circulation

Different Types of Cassette Ceiling Fan Coil Units in Terms of Airflow Direction

Cassette ceiling fan coil units are primarily divided into the following three categories in terms of how they ventilate:

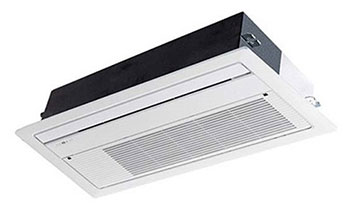

1. One-Way Cassette Ceiling Fan Coil Unit

This type of cassette ceiling fan coil unit distributes air from only one direction. One-way cassette ceiling fan coil units are usually produced in lower capacities (between 200 and 800 CFM).

This type of fan coil is more suitable for small spaces such as hotel rooms, small offices, small conference rooms, and residential units, and due to the one-way airflow, it is usually installed in corners or spaces where multi-directional air distribution is not required.

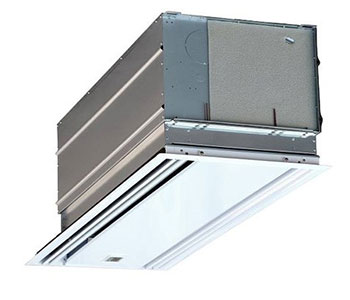

2. Two-Way Cassette Ceiling Fan Coil Unit

This model has outlet vents on both sides of the unit and is usually offered in capacities of 400 to 1200 CFM. Two-way cassette ceiling fan coil units are an ideal choice for long corridors, office halls, medium-sized stores, and spaces that require air distribution in two directions.

The performance of the cassette ceiling fan coil unit results in better air distribution compared to the one-way type and is more applicable in rectangular environments.

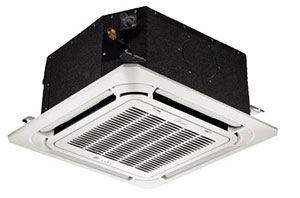

3. Four-Way Cassette Ceiling Fan Coil Unit

This type is the most widely used and common type of cassette ceiling fan coil unit, which throws air out in four directions and provides the most coverage in the environment. This model is usually produced in capacities of 600 to 2000 CFM and is suitable for shopping malls, lobbies, large halls, open offices, restaurants, and large commercial spaces.

Four-way cassette ceiling fan coil units, due to their uniform air distribution, have better performance than other types of cassette fan coils and cool or heat the environment faster and more uniformly.

cassette ceiling fan coil unit

Two-Pipe and Four-Pipe Cassette Ceiling Fan Coil Units

Another important point in choosing and buying cassette ceiling fan coil units is the type of two-pipe or four-pipe.

Two-pipe fan coils have one supply water pipe and one return water pipe and do not have the ability to provide cold and warm air simultaneously.
Four-pipe fan coils are produced to provide cooling and heating simultaneously, which have two pipes dedicated to hot water and two other pipes dedicated to cold water in the device.

In the meantime, some companies have started producing four-pipe fan coils. Iranian companies also offer these products in a 4-pipe format based on customer orders to further satisfy their customers.

Due to the popularity and advantages of cassette ceiling fan coil units, many prominent companies design and manufacture this type of fan coil, among which we can mention the prominent brands Goldiran, Saran, Ventilation, and Green fan coil units.

Cassette Ceiling Fan Coil Unit Capacity Calculation

One of the important points in selecting and purchasing cassette ceiling fan coil units is determining their appropriate capacity. For this purpose, you can use the approximate table below:

How to calculate fan coil capacity

DamaTajhiz HVAC; The First Specialized HVAC Equipment Price Listing and Buying Reference (Since 2004)

Buying Cassette Ceiling Fan Coil Units

To use ceiling cassette fan coils, the building must have the necessary infrastructure for installing and commissioning this type of fan coil.

Ceiling cassette fan coils require a false ceiling with a standard height and do not require ductwork. Dear customers, if you have these conditions, you can purchase ceiling cassette fan coils.

Here at the DamaTajhiz HVAC store, technical information on dozens of models of cassette ceiling fan coil units from reputable brands with original warranties is provided for your enjoyment of the good feeling of an optimal and smart shopping experience.

The Price of Cassette Ceiling Fan Coil Units

The price of cassette ceiling fan coil units varies depending on the brand, capacity, air delivery type, and whether it is two-pipe or four-pipe, and you can choose the most suitable option from hundreds of models of cassette ceiling FCUs offered in the DamaTajhiz HVAC store based on your budget.

It is worth noting that the prices of all cassette ceiling fan coil units offered in the DamaTajhiz HVAC store are up-to-date, and the discounts desired by consumers are included in these prices; in a way that these prices also include the guarantee of the best price.

Dear Users:

While thanking you for trusting the technical opinions of temperature equipment sales experts, it should be noted that the choice and brand selection of the desired product is ultimately decided by the buyer based on the history, strength of the brand, service, and price of the product.

But in the field of floor fan coils, most users and buyers choose and purchase the best-selling brands such as Damatajhiz and Saran according to their quality, price, and after-sales service.

If, after reading the above materials, you have more questions to decide on the purchase of floor fan coils, you can contact our air conditioning equipment sales experts after calling the collection of temperature equipment and extension numbers 117-119-120-126-317.
