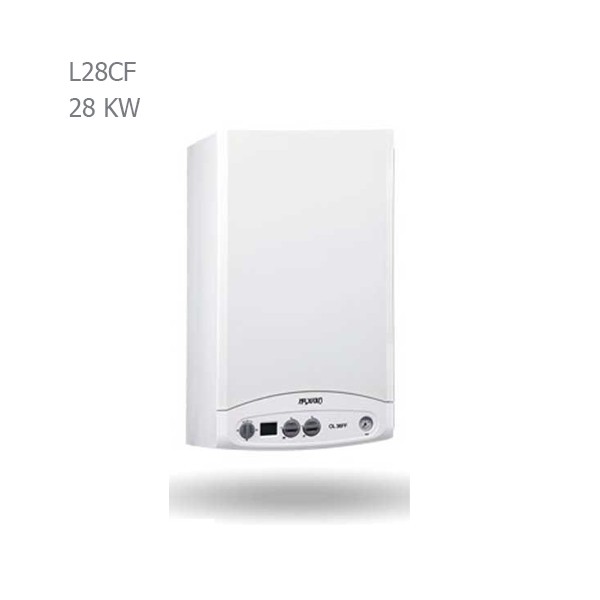

Iran Radiator Gaseous Wall-Mounted Boiler L28CF

Purchasing Guide for Iran Radiator Gaseous Wall-Mounted Boiler

1. Iran Radiator Gaseous Wall-Mounted Boilers holding index B and are made of mono-exchanger Boilers and models holding indices E, M, or L are made of double-exchanger Boilers.
2.     Iran Radiator Gaseous Wall-Mounted Boilers are made of mono-exchange and double-exchanger. The exchanger incorporated (main double exchanger) in Iran Radiator mono-exchanger and thermic wall-mounted Boilers, simultaneously is responsible for the supply of consumable hot water and heating of construction.
3.     Iran Radiator double-exchanger or monochromic Boilers are used under the conditions in which consumed water contains hardness (salts) and or apartment area exceeds 120 M. Iran Radiator double-exchanger Boilers, the main exchanger shall provide the environment with heating and plate exchanger is used for supplying hot water.
4. Iran Radiator wall-mounted Boilers holding Index FF are equipped with a fan and the models holding index CF are not equipped with a fan.
5.     Use of fan-run boiler with double-Wall-mounted chimney (Coaxial) which is more confirmed, provides the ground for supplying airflow required for ignition of the boiler by the inner wall of the chimney from outside an apartment and oxygen and wetness of inside an apartment is not reduced.
6.     In case the boiler has been installed at open space and or boiler chimney has been constructed in the form of L (L-shaped) (it means part of chimney path has been executed horizontally, use of fan-run boiler for easy passage of smoke and ignition gases is obligatory.
7.     For approximate calculation of BTU of Iran Radiator boiler required for residential apartments, multiply the area of the apartment by 150 (kilocalories) and area of office buildings by 100 (kilocalories). (For example, you are recommended to use a 21000-kilocalorie boiler for residential apartments with an area of 140 sqm.).
8.     Several advantages of the use of these Boilers include high heating efficiency, low and voiceless performance, full safety, small dimensions of boiler and occupation of less space, protection system against water insufficiency, fully digital control system, protection system against chimney obstruction, the supply of much and permanent hot water, easy in installation, start-up, service, and maintenance.
9.     Wall-mounted Heating Boilers (LG) are equipped furnished with anti-ice protection. This system is only active when, firstly, the boiler is turned on, secondly, water pressure in the boiler occurs at least for one time, thirdly, boiler gas is connected; however, the best option is non-installation of boiler in the locations where it is impossible to freeze water in the winter.
10.   Iran Radiator Gaseous Wall-Mounted Boilers, Models OM24FF, and OE 28FF with very low volume and installation in various points, easy in repair and maintenance, lower price, and simplicity of components are designed to be used at places only require heating. Other properties of the above models are as follows:

• High efficiency and reduction of energy consumption
• Equipped with smart electronic board and capability of automatic troubleshooting
• The capability of installation of hot water resource by using a 3-way valve
• Increase the ability of power by adding boiler Qty. if required
• The capability of Replacement with a central powerhouse system

According to Topic 17 of the National Construction Code (2011) min. area confirmable for installation of the boiler at (office or residential) apartment is 64 Sqm., otherwise, incorporation of fresh air valve for suitable ignition of boiler installation location is obligatory. Electricity required for all models of wall-mounted Iran Radiator Boilers is mono-phase and 220 V. (50 Hz-220v-1 PH). Wall-mounted gaseous Iran Radiator Boilers are installed by the after-sale-services network of Iran Radiator Co. free of charge (The purchaser should pay devices, valves, and fittings of installation charges). Gas Fuel Wall-mounted Iran Radiator Heating Boilers are provided with a 24-month warranty and after-sale services. To see more models and buy central heating boiler packages click on the linked words.

The points should be taken into consideration after purchasing Iran Radiator Gaseous Wall-Mounted Boiler

1.     After purchasing, for use of free of charge installation services, and warranty of split, contact permissible call Nos. inserted on the carton of the boiler (Please do not open carton before attendance of the authorized after-sale-services agent)
2.     According to the safety and technical standards of Gas Co., a separate chimney should be directly executed up to the roof of the building for each Iran Radiator Gas-fuel Wall-mounted central heating boiler. Using a joint chimney is not permissible.
3.     Generally, an anti-freezing system in heating boilers is active only when, firstly, the boiler is plugged, secondly, water pressure inside a boiler at least is an atmosphere, thirdly, the boiler is connected to town gas, but however the best option is noninstallation of boiler in the locations where it is impossible to freeze water in the winter
4.     Having more than 1000 permissible after-sale-services centers across the country, Iran Radiator Company fully supports its products.
5.     Regarding the head (pressure) of a small circulator pump incorporated in all kinds of wall-mounted chiller Boilers, the general maximum length of piping from the wall-mounted boiler to the latest location of the chiller radiator should not be more than 35 m.
