Chauffagekar Tall Gaseous Floor-standing Package P5 Underfloor Heating

  • Chimney fan: None
  • Has a 20-liter coil hot water tank
  • Covered area: up to 250 square meters
  • Type of fuel consumed: Liquefied petroleum gas (LPG) - Natural gas
  • Maximum calorific value: 36,000 kcal
$723,976,000
Tax excluded
Select the desired model
Quantity

New
View all products of شوفاژکار

Guide for purchasing the gaseous package heating from the floor-P5

Floor-standing gas package model P5 (with a 20-liter coiled tank) and in the 5-blade model is very suitable for installation in outdoor spaces of buildings, villas, etc. The central heating boiler package model P5 is made of cast iron and the maximum power consumption of this package is 100 watts. Gaseous floor-standing central heating boiler packages (with copper coil tanks) meet all the needs of consumers due to the ability to produce sanitary hot water and hot water for radiators at the same time. Chauffagekar Industrial Company has ISO 9001: 2008 quality management certificate from SGS Switzerland company and its gaseous floor-standing packages are tested in all stages of production by the quality assurance unit in terms of production quality and efficiency.

Chauffagekar package p5 underfloor heating

Features of tall gaseous central heating boiler package model P5 underfloor heating

  • The above boiler package is equipped with a burner without an atmospheric fan (silent).
  • The boilers of the above gaseous boilers are made of cast iron.
  • They have a hot water heat exchanger with 14 square feet of copper coil.
  • The maximum power consumption of the boiler gaseous ground packages is about 100 watts.
  • The above floor-standing package chimney is supplied in two forms without the fan and with the fan. The fan chimney is used to direct the combustion gases out of the environment.
  • They are equipped with a 20-liter hot water storage tank, and these packages also use natural gas.
  • The operating temperature range of the central heating boiler gaseous floor-standing packages (with tank converter and copper coil) is 50 to 90 degrees Celsius.
  • They have a European 3-mode circulation pump with a flow rate of 25GPM. (Similar to the Grandfoss UPS 25-55 model, which can be changed to a 25-80 UPS pump if the customer needs)
  • This model of packages (with tank converter and copper coil) can also be used in underfloor heating systems and fan coils, but in these cases, the customer must contact the sales engineering unit to select and order the appropriate product.

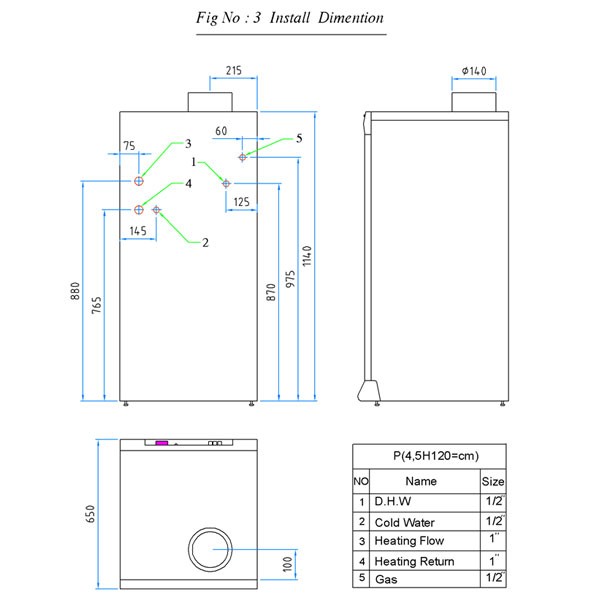

dimensions of chauffagekar heating boiler packages

Advantages of gaseous floor-standing packages (with tank converter and copper coil)

  • Having the national standard mark of Iran
  • Small size and ease of installation
  • Use of cast iron boilers with 10 years warranty
  • Using the Danish Grandfoss pump to provide the desired warm water
  • Use of SIT Italy two-stage control valve with electronic board
  • Use of electronic anti-fouling device to protect the system against fouling caused by water hardness

Warranty and after-sales service for the gaseous floor-standing package model P5

The P5 tall central heating boiler package has a 10-year boiler warranty, a 2-year parts warranty, and a 10-year after-sales service.

 In the reference and store site of Damatajhiz, the information and guaranteed price of central heating boiler packages with the main guarantee have been provided for you to enjoy a good sense of optimal and smart central heating boiler purchase.
