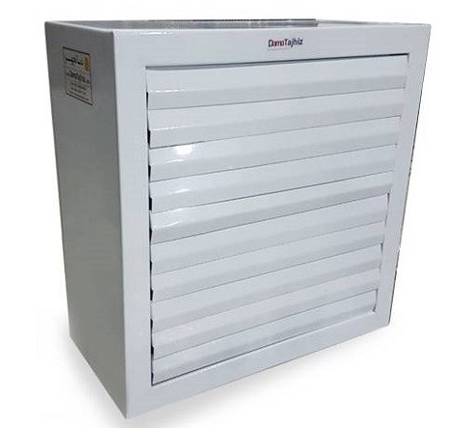

DamaTajhiz Steam Unit Heater DT.U 160 S

Instruction for Purchasing DamaTajhiz Steam Unit Heater DT.U 160 S

DamaTajhiz steam Unit Heater DT.U 160 S is used to heat large areas such as factories, industrial workshops, large repair shops, and similar spaces.

Before selecting the capacity and number of units, you first need to calculate the required heating load of your saloon as well as the installation layout of units considering the heating and blowing capacity of each unit. (You may consult with DamaTajhiz sales service specialists of the heating department)

The turn-off/on command for an electromotor-driven fan of each unit is sent by the thermostat installed in a proper zone inside your saloon.

Specifications of DamaTajhiz Steam Unit Heater DT.U 160 S

• The unit frame is made of a 1mm thick oil sheet electrostatically coated by powder paint. Decorative, aluminum and steel frames can be manufactured depending on customers’ orders.
• Two-stage and single-stage speed units are equipped with blowing electromotors of reputable brands, depending on customers’ orders. Our units use two types of blowing electromotor: horizontal (horizontal air outlet) and vertical (downward air outlet) for high-ceiling buildings.
• DamaTajhiz steam Unit Heater DT.U 160 S is equipped with a two-raw coil made of seamless inlet and outlet pipe (dia=1 inch) along with seamless cupper-made blades (grade A106) carrying water as a thermal energy source.
• DamaTajhiz steam Unit Heater DT.U 160 S is equipped with axial fans responsible for passing air through the coil and blowing warm air into the space to be heated.
• DamaTajhiz steam Unit Heater DT.U 160 S is equipped with an air outlet damper with individually adjustable blades by which outlet air could be directed to different zones of the space to be heated.
• DamaTajhiz steam Unit Heater DT.U 160 S is equipped with a casing Fan a coil is installed inside the casing and an air outlet damper is installed on it.

You may find technical specifications and guaranteed prices for steam Unit Heater DT.U 160 S with an original warranty on our website and shops. We try to give our honorable customers the appealing feeling of having a smart and efficient purchase.

 DamaTajhiz Steam Unit Heater DT.U 160 S Warranty

We provide 18 months golden guarantees to DamaTajhiz steam Unit Heater DT.U 160 S.

In the following, a list of customers and projects of DamaTajhiz Steam unit heater is provided

• A DamaTajhiz DT.U 400 S Steam unit heater with a capacity of 400,000 BTU/hr for the project of Pars Oil Company, Tehran, Iran.
• A DamaTajhiz DT.U 400 S Steam unit heater with a capacity of 400,000 BTU/hr for the project of Aria Sepehr Chemistry, Tehran, Iran.
• A DamaTajhiz DT.U 160 S Steam unit heater with a capacity of 160,000 BTU/hr for the project of Omran Gostar Farjam Company, Tehran, Iran.
