DamaTajhiz Steam Unit Heater 74000 BTU/HR DT.U75S
- Available in both wall-mounted and ceiling-mounted models
- Available with single-phase or three-phase power supply
- Equipped with air outlet damper with adjustable blades
- Designed for use in large spaces and indoor halls
Pre-Sales Services:
Engineering consultation + Capacity calculation and selection
Flexible payment terms + Standard installation services
Reasonable or fast delivery time

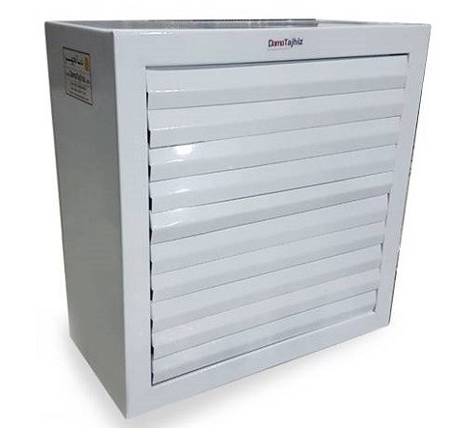

Buying Guide for Damatajhiz Steam Unit Heater 74000BTU/HR Model DT.U75S
The Damatajhiz Steam Unit Heater 74000BTU/HR Model DT.U75S is a device equipped with an axial fan or blower responsible for moving air through the coil and circulating it within the heated space.
In general, Damatajhiz steam unit heaters are used for heating large spaces such as factories, industrial workshops, large repair shops, and more.
The body of the Damatajhiz Steam Unit Heater 74000BTU/HR Model DT.U75S is made of 1 mm thick galvanized sheet with an electrostatic powder coating. Upon customer request, the unit can also be manufactured with decorative, aluminum, or stainless steel body options.
Before selecting the capacity and quantity of unit heaters, first determine the heating requirement of the hall and then plan the layout of the units based on the heating output of each one and the air throw distance. (To do this, you may also consult the heating sales expert at Damatajhiz.)
Also note that the on/off control signal for the fan motor of each unit heater is provided by a thermostat installed in an appropriate location within the hall.
Damatajhiz – Thousands of Products for Thousands of Projects (since 2004)
Features of Damatajhiz Steam Unit Heater 74000BTU/HR Model DT.U75S
The features and specifications of the Damatajhiz Steam Unit Heater 74000BTU/HR Model DT.U75S are as follows:
- The Damatajhiz Steam Unit Heater 74000BTU/HR Model DT.U75S has a single adjustable-blade air outlet damper, which allows directing the heated air to different parts of the target area.
- Single-speed and dual-speed unit heaters can be supplied upon client request with reliable blower motors and are manufactured in both wall-mounted and ceiling-mounted versions.
- Equipped with a two-row coil using seamless Mannesmann tubes (can be customized with A106-grade seamless Mannesmann tubes upon customer request, as noted in the sales invoice).
- Includes an axial fan or blower responsible for pushing air through the coil and circulating heated air throughout the heated space.
- The Damatajhiz Steam Unit Heater 74000BTU/HR Model DT.U75S includes a cabinet that houses the fan and coil, with the air outlet damper mounted on it.
Damatajhiz – Thousands of Products for Thousands of Projects (since 2004)
Ordering and Warranty for Damatajhiz Steam Unit Heater 74000BTU/HR Model DT.U75S
The Damatajhiz Steam Unit Heater 74000BTU/HR Model DT.U75S comes with a 15-month Damatajhiz Golden Warranty and 10 years of after-sales service.
- At Damatajhiz Specialized Collection, technical information and guaranteed prices for unit heaters from reputable brands with original warranties are provided to ensure you enjoy an optimal and smart purchase experience.
- To view more technical information for purchasing a Damatajhiz steam unit heater, please click on the "Technical Specifications" section on the product page.
 |
 |
| Model | DT.U 75 S |
|
| Heating power(Btu/hr) | 74.000 | |
| Electricity type | Single phase 220 volts | |
| Dimensions | Height(cm) | 50 |
| Width(cm) | 50 | |
| Depth(cm) | 30 | |
| Engine power(w) | 135 | |
| Aeration volume(cfm) | 1400 | |
| Engine speed(RPM) | 1400 | |
| Work pressure(bar) | 5 | |
| Test pressure(bar) | 20 | |
| Input size(inch) | "1/4 1 | |
| Output size(inch) | "1 | |
| Coil specifications | Two rows of coils with seamless Mannesmann steel tube with aluminum fins (8fpi) | |
| Fan diameter(cm) | 30 | |
| Electric motor of a reliable brand of blower | Yes | |
| Air outlet damper with adjustable blades | Yes | |
